Series MG-350(HR)

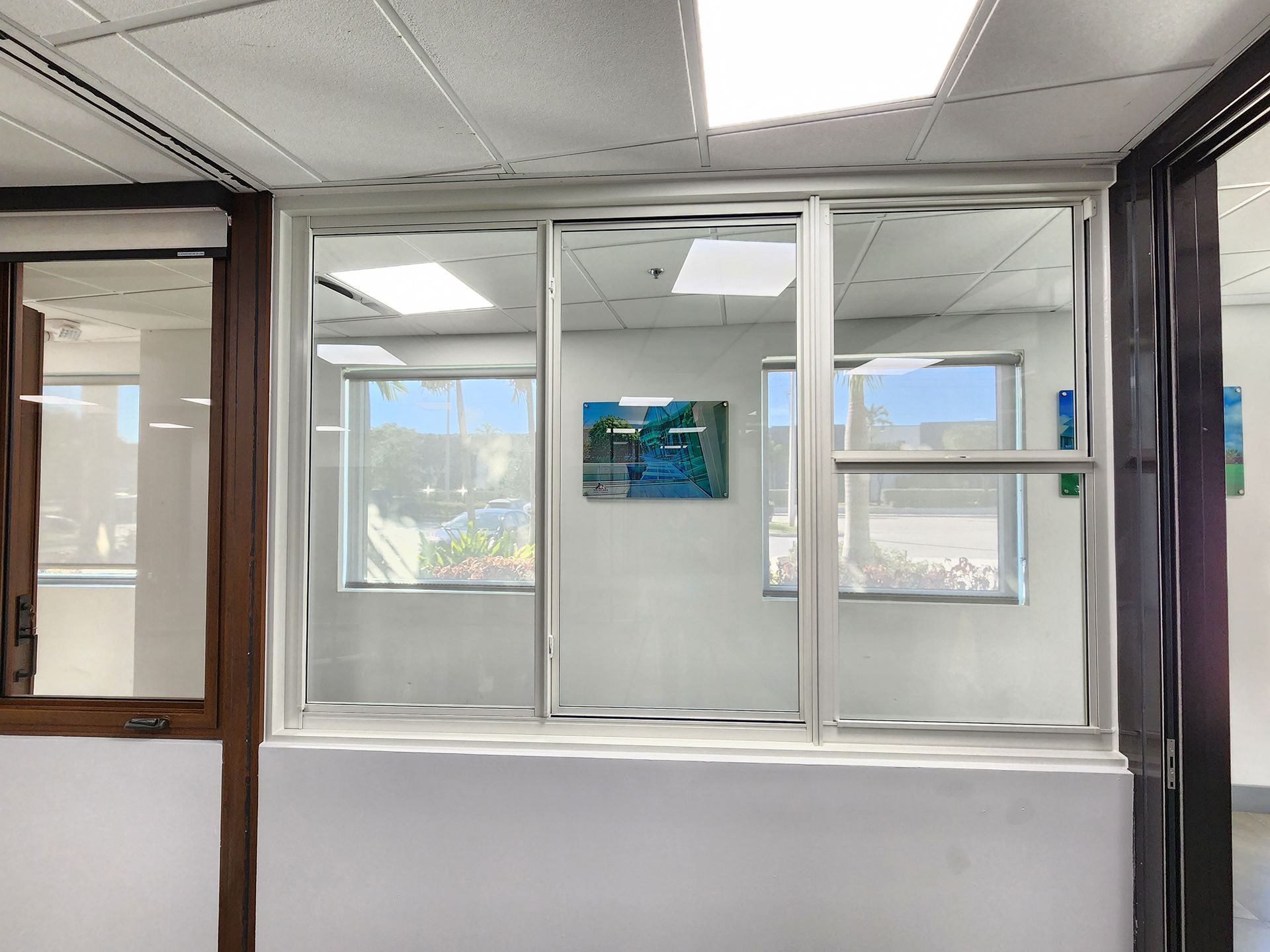

Impact Resistant Horizontal Sliding Window

  • Meets HVHZ. LMI Rated
  • DP= +/-65 PSF

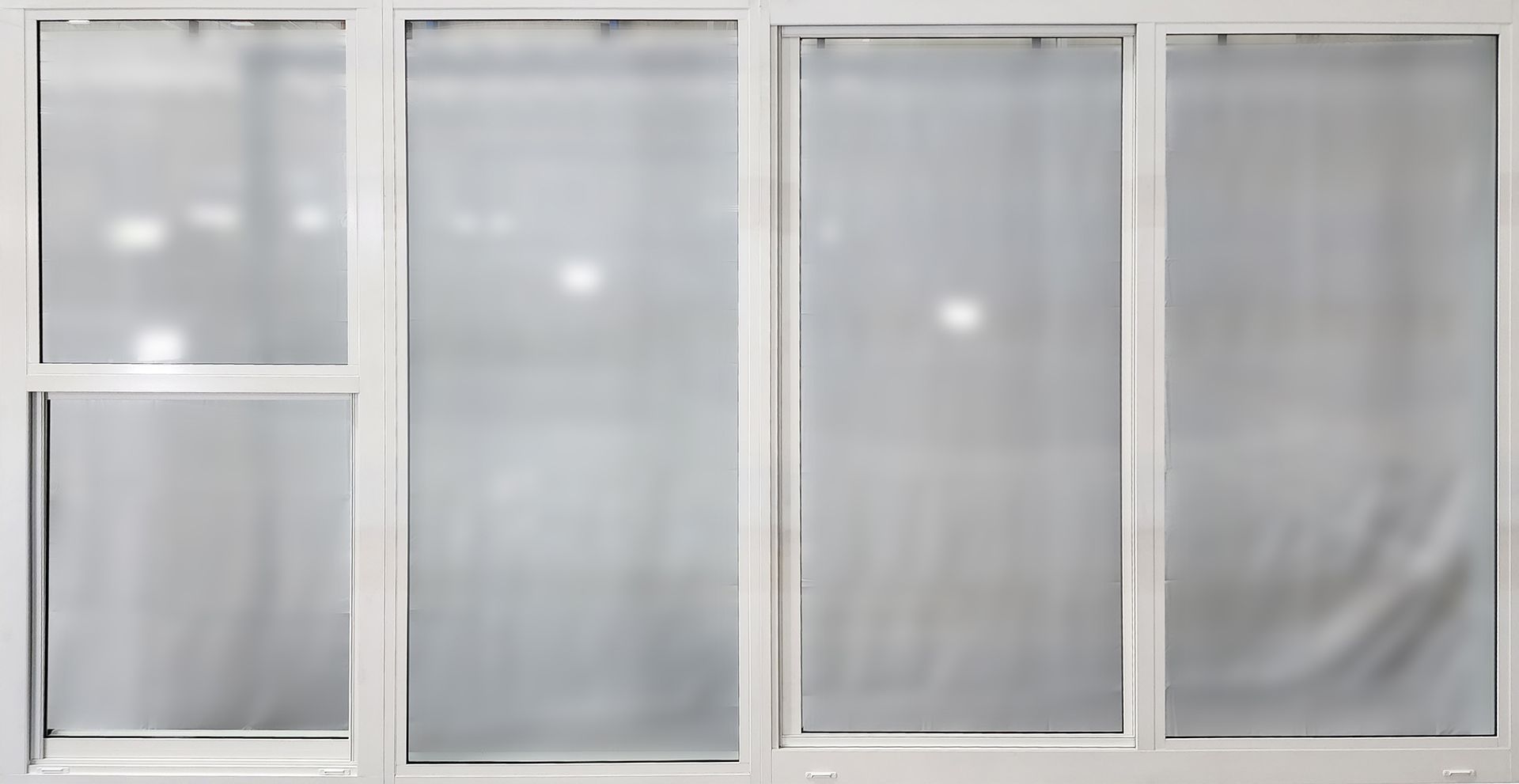

  • Sizes: OX/XO up to 74” x 63” and XOX up to 111” x 63”

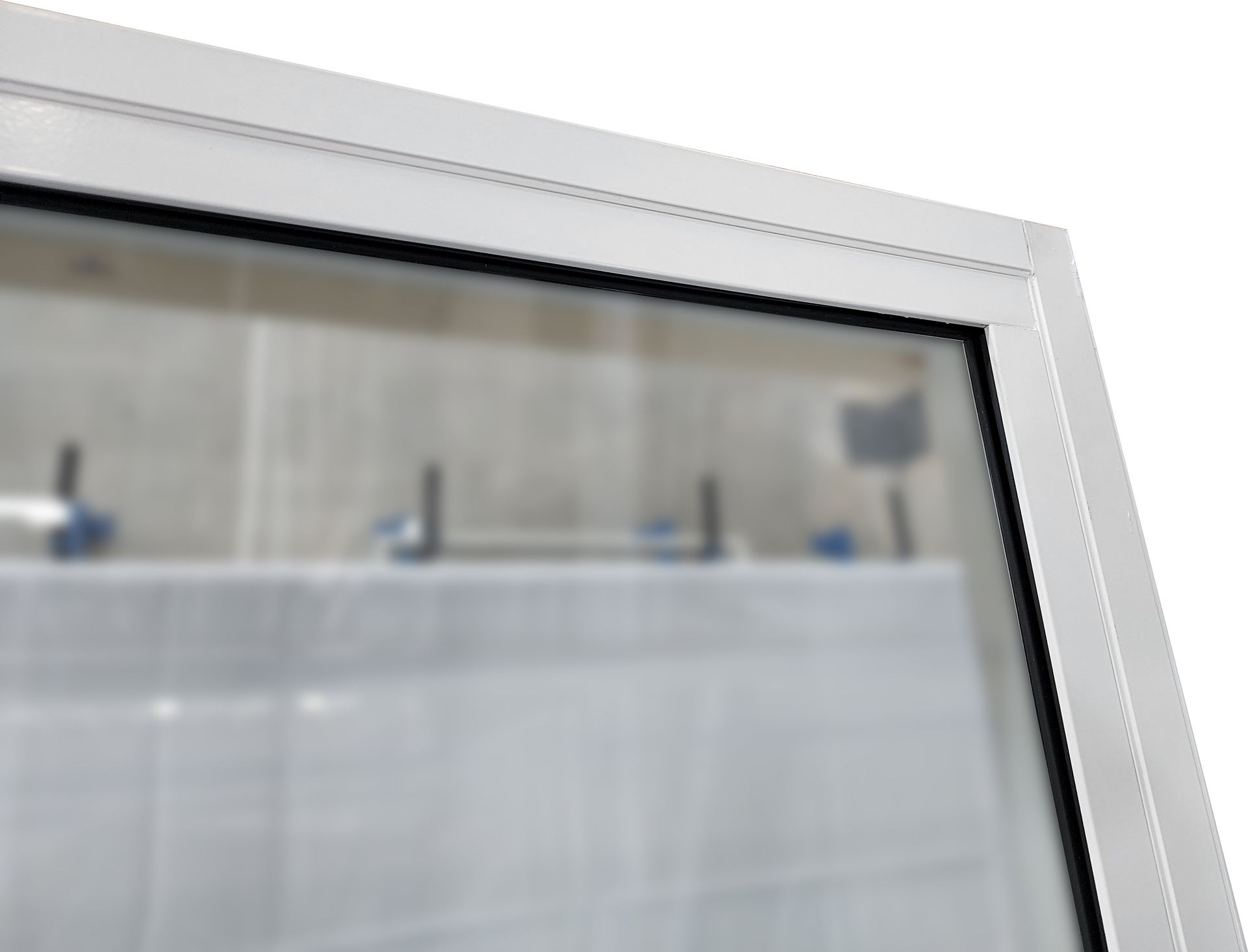

  • Slim structure to maximize glass view and day light opening
  • Extrusions are 2-3/16” deep to have the minimal impact on interior finish during retrofit
  • Machine glazed with silicone GE 2000/DS795
  • Laminated Heat Strengthened Glass with 0.09 thick PVB as interlayer
  • Silicone glazing gasket and stainless steel screws
  • Clear, tinted, or reflective glass. Low-e glass for enhanced Solar Heat Gain Coefficient while allowing maximal transparency and visual light transmittance
  • Powder coat finish. Standard and custom colors. Meeting AAMA 2604 as standard finish (5 years warranty) with possibility to upgrade to
    AAMA 2605 (10 years warranty)

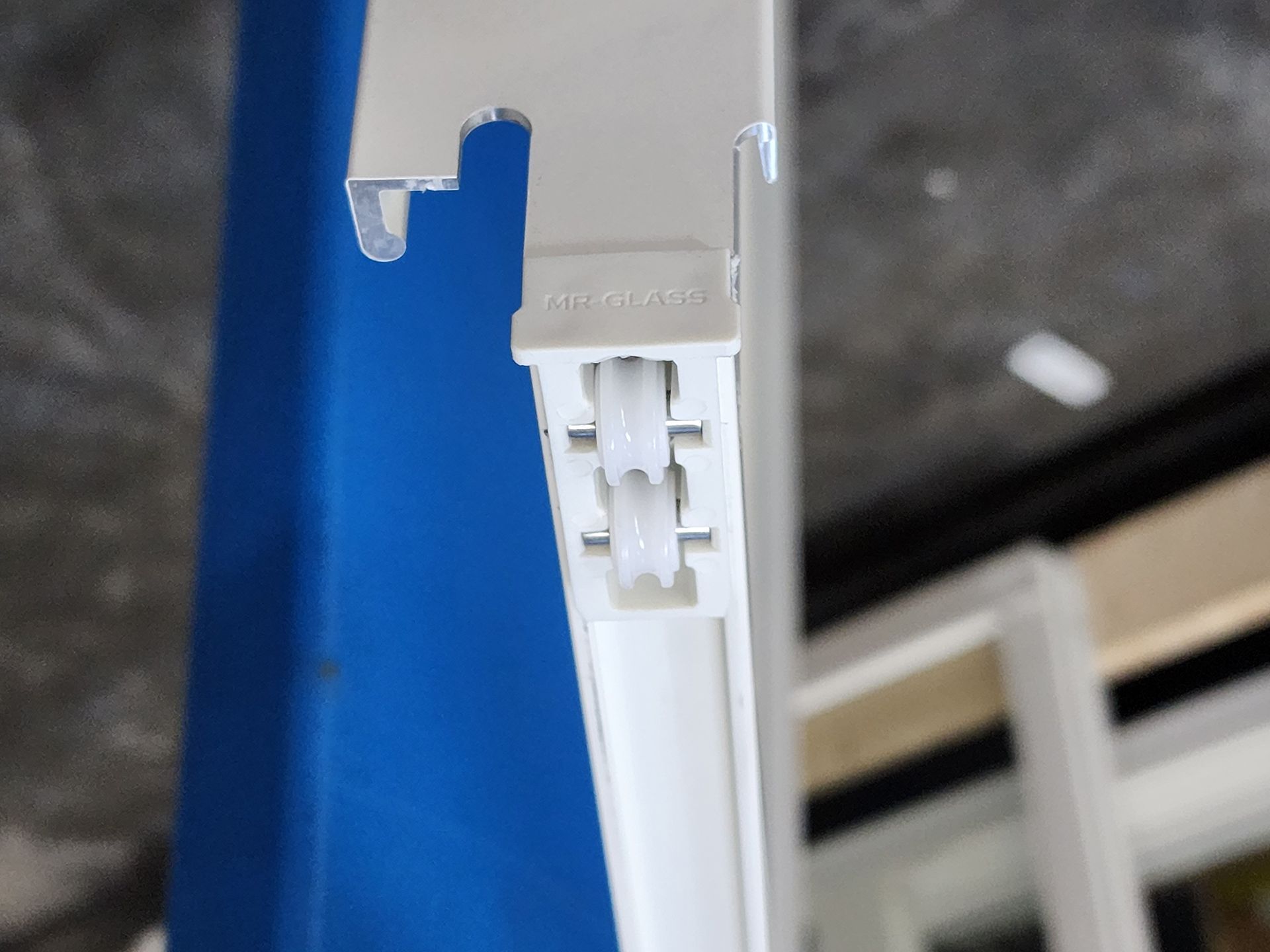

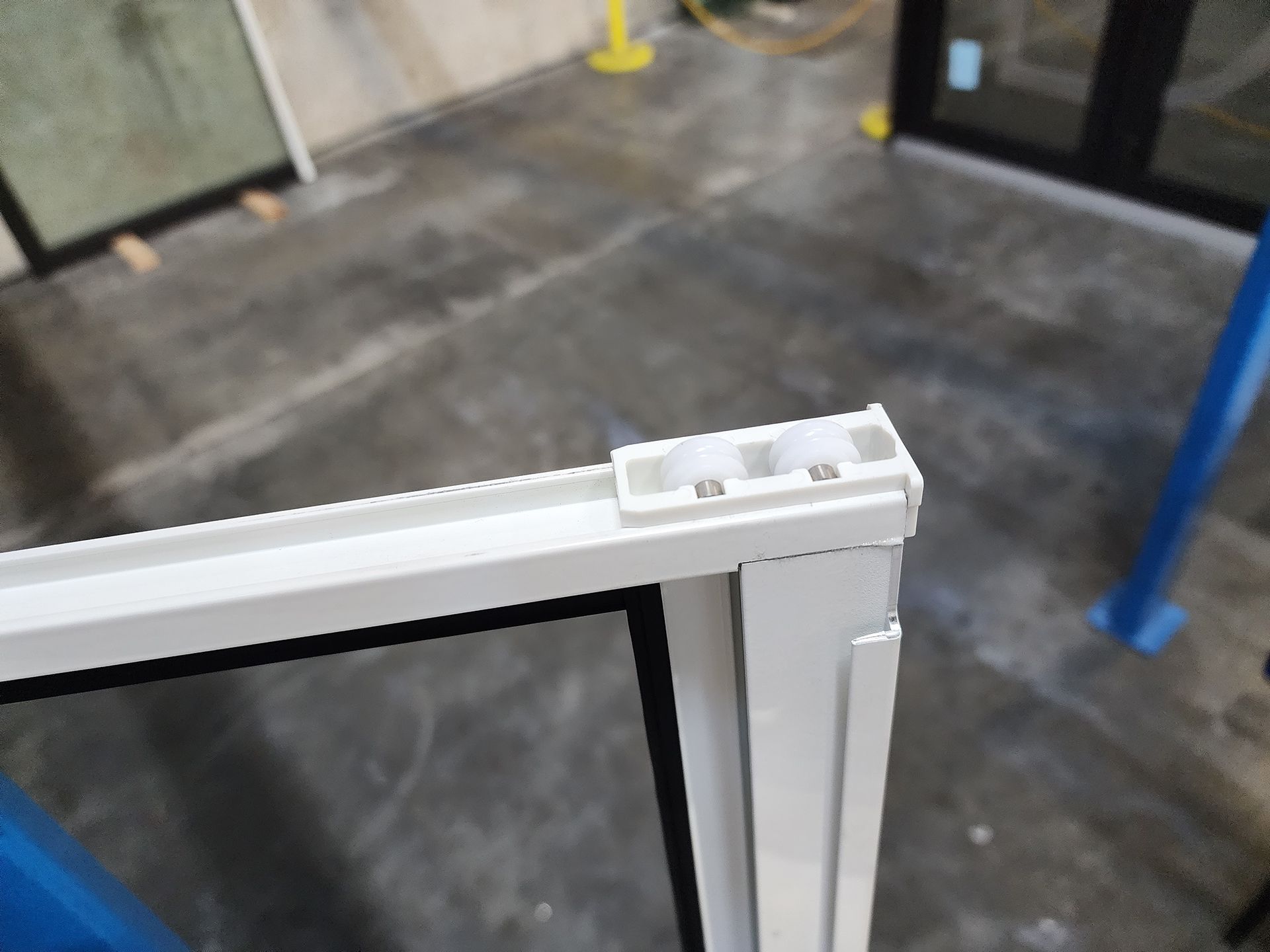

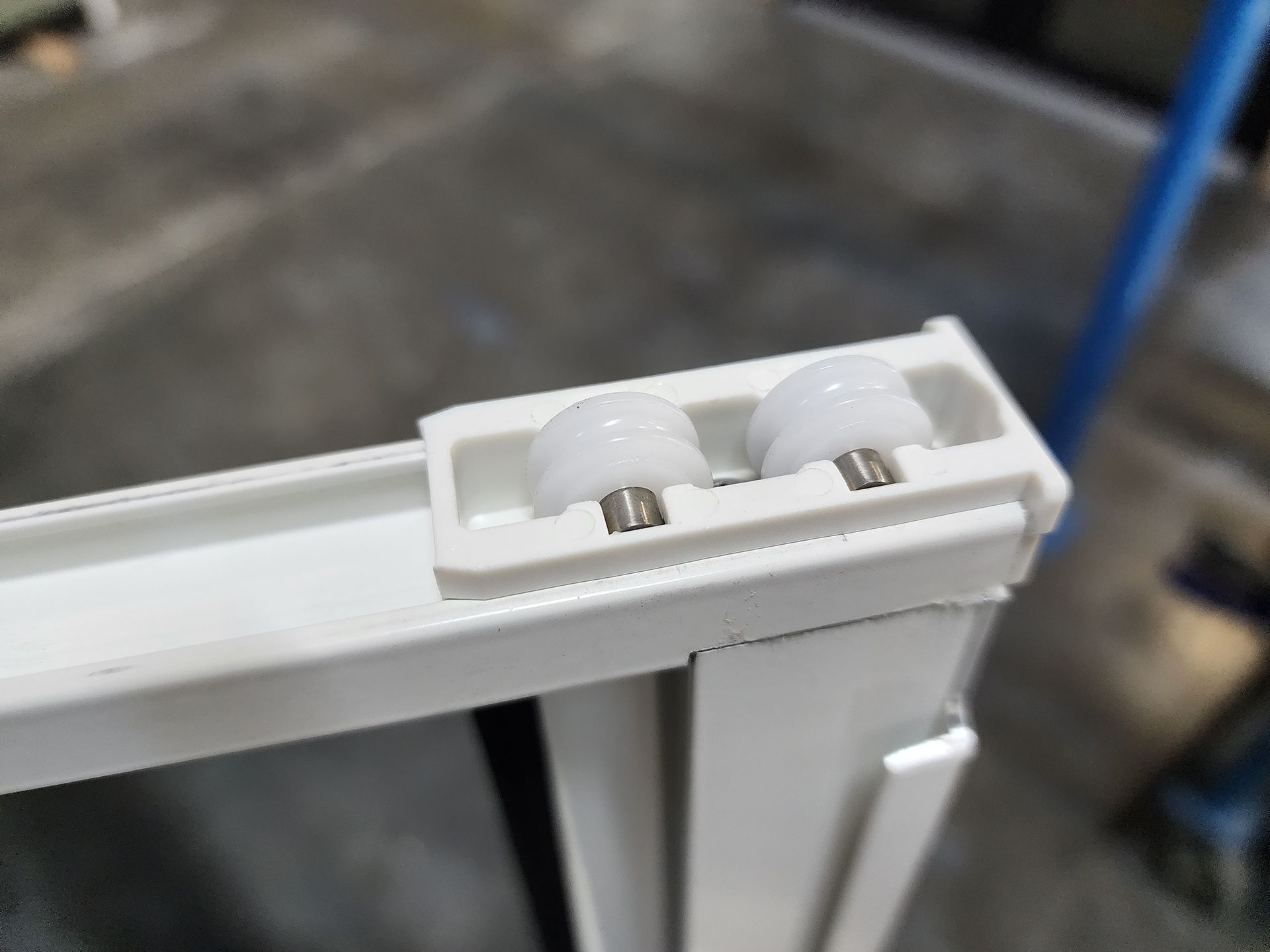

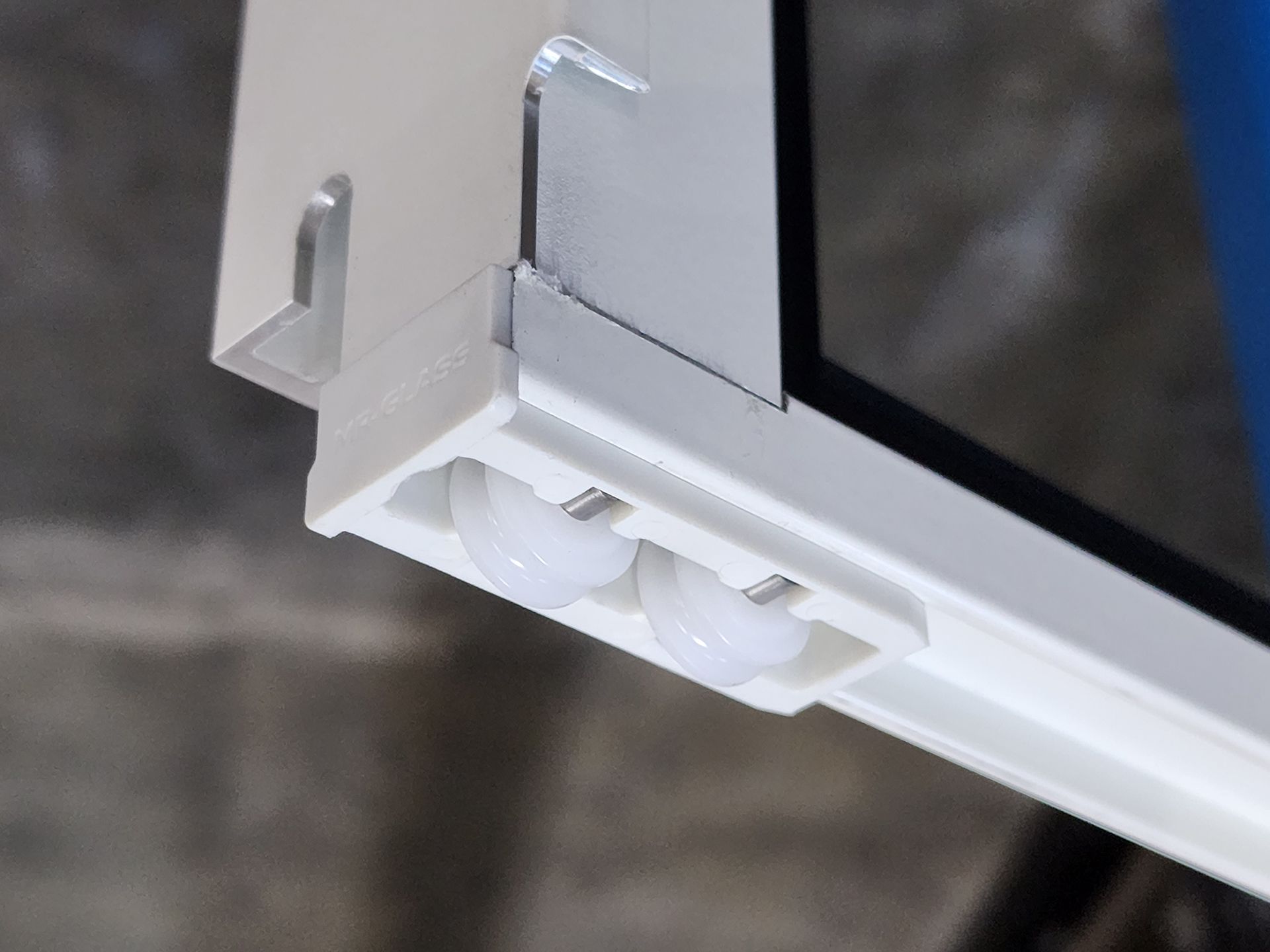

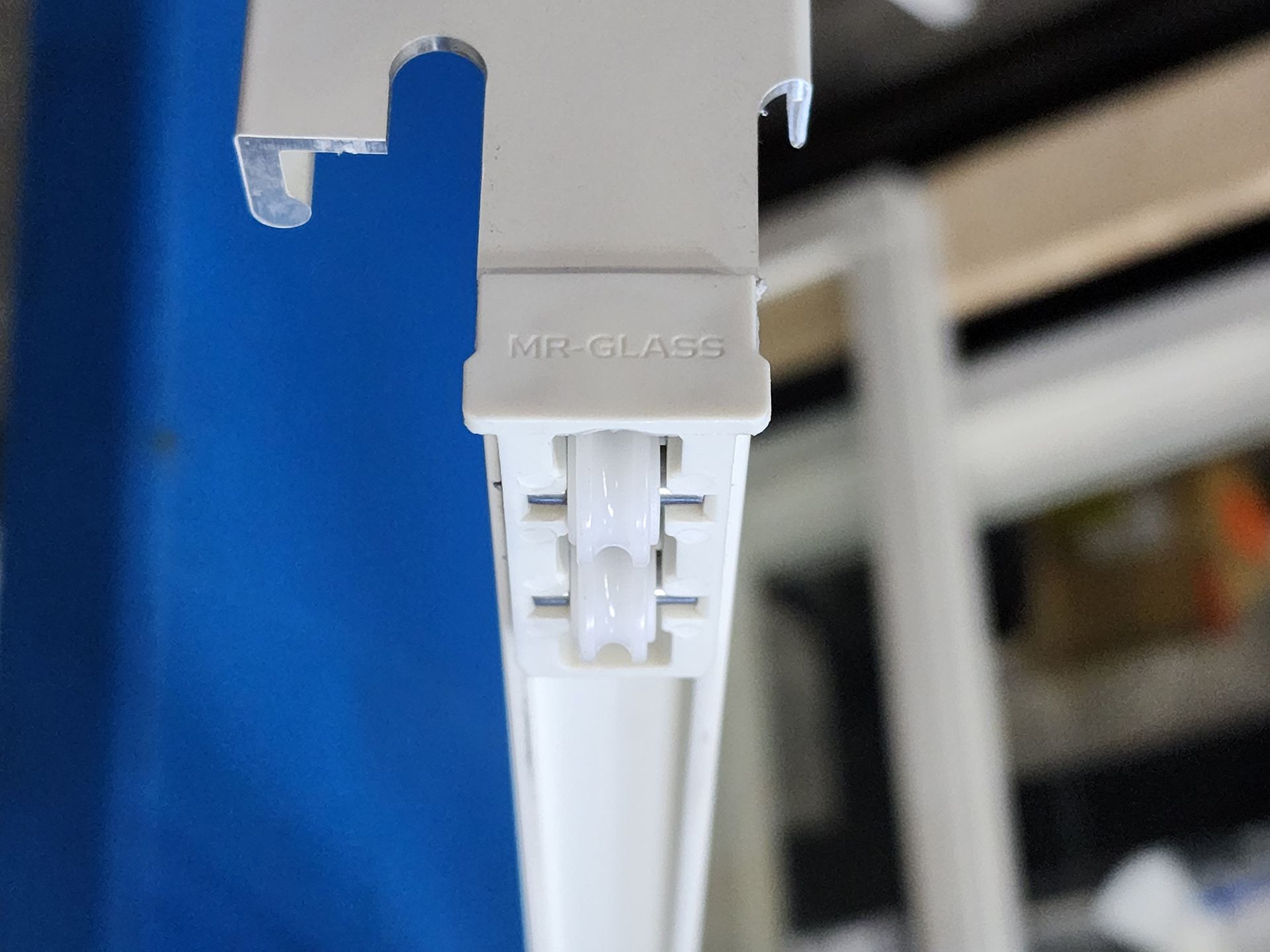

  • Wheels in PMO (Acetal) for smooth operation
  • Aluminum 6063T6 structure
  • Colonials for design freedom
