Series MG-4000

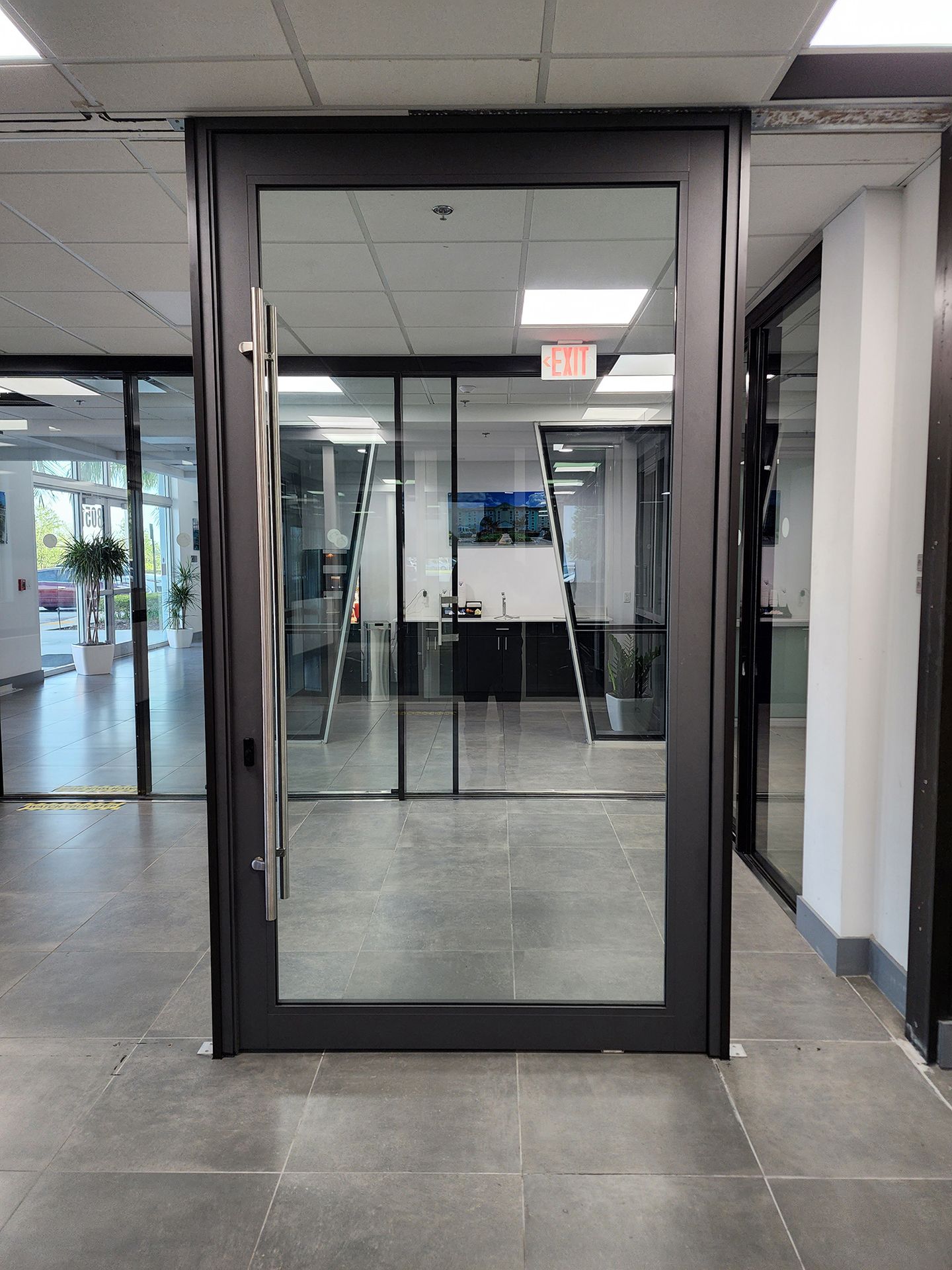

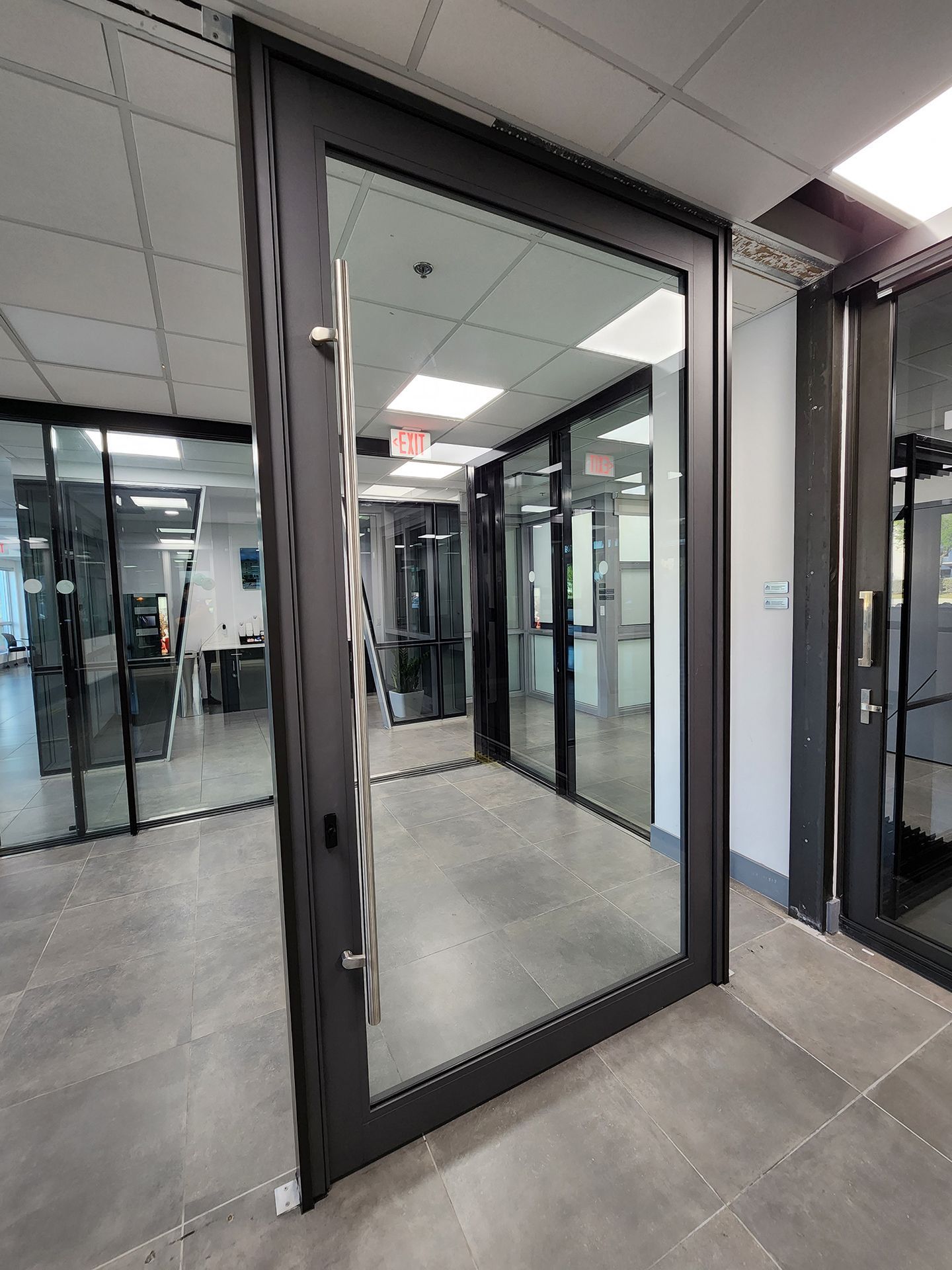

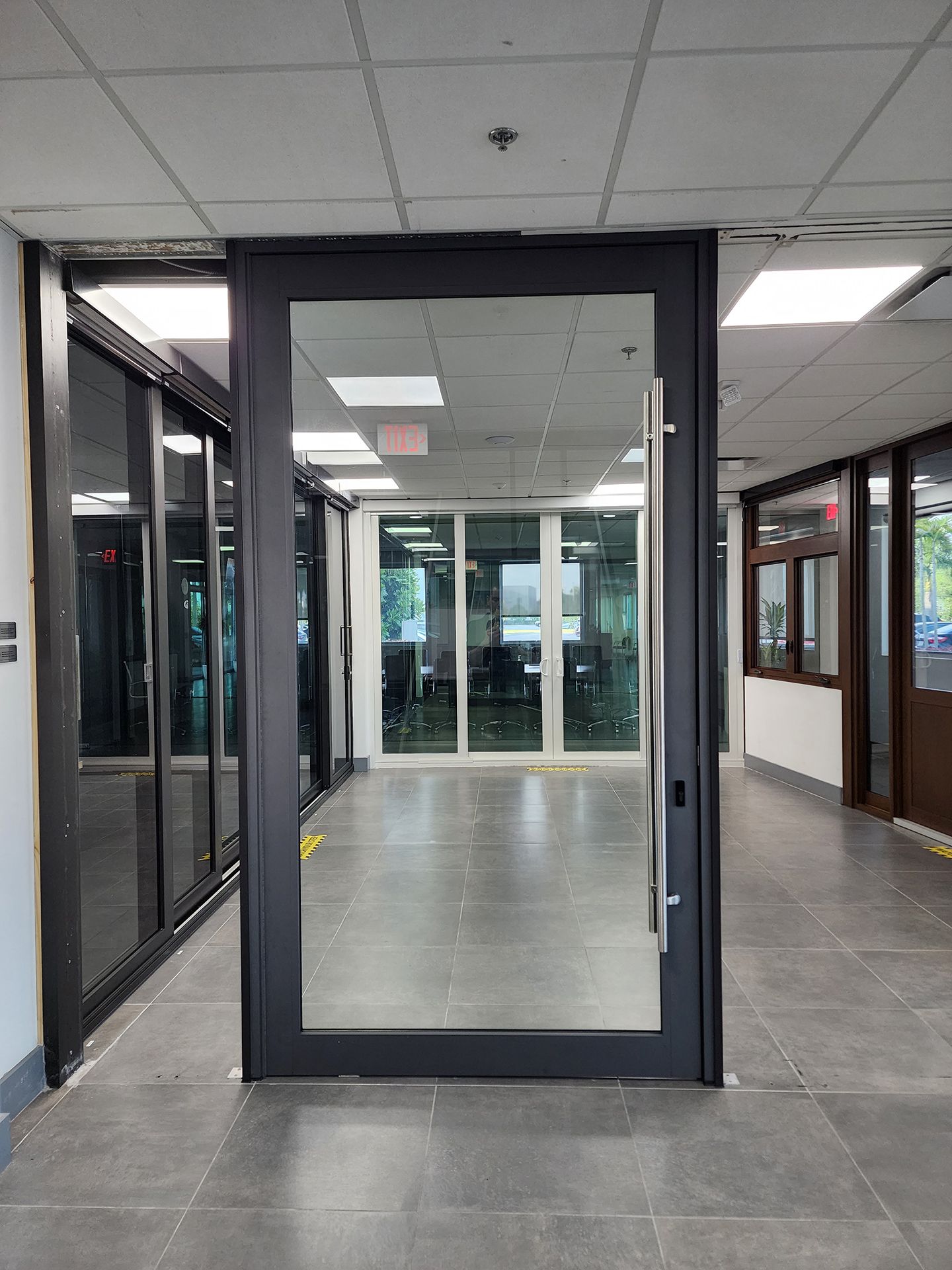

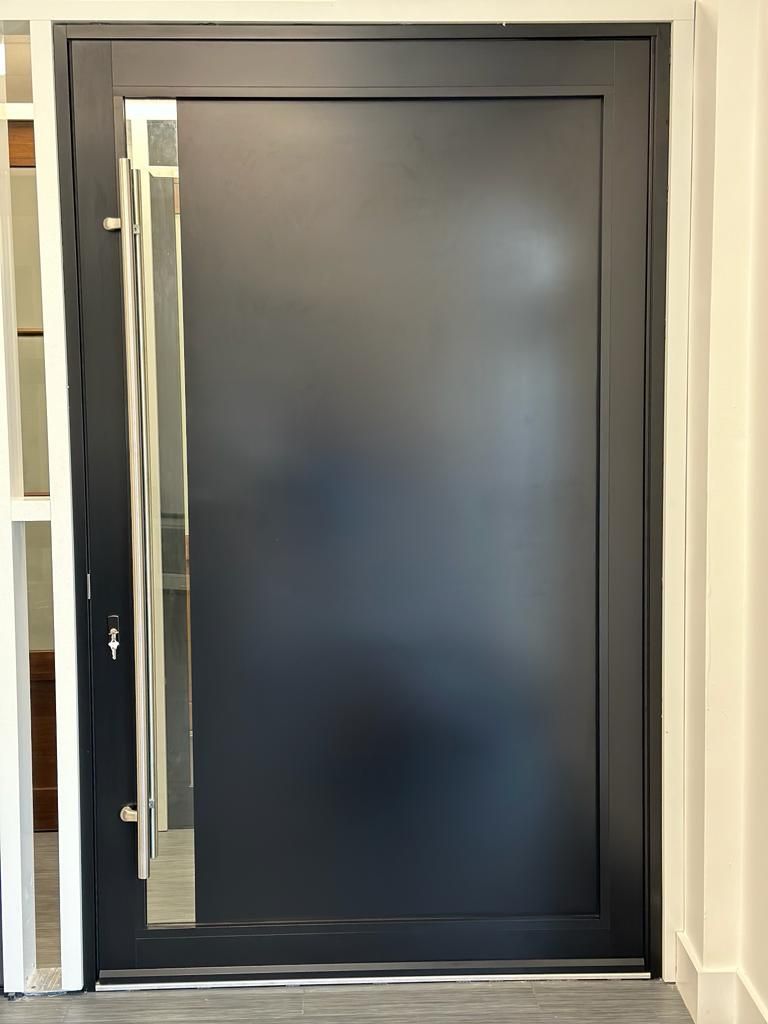

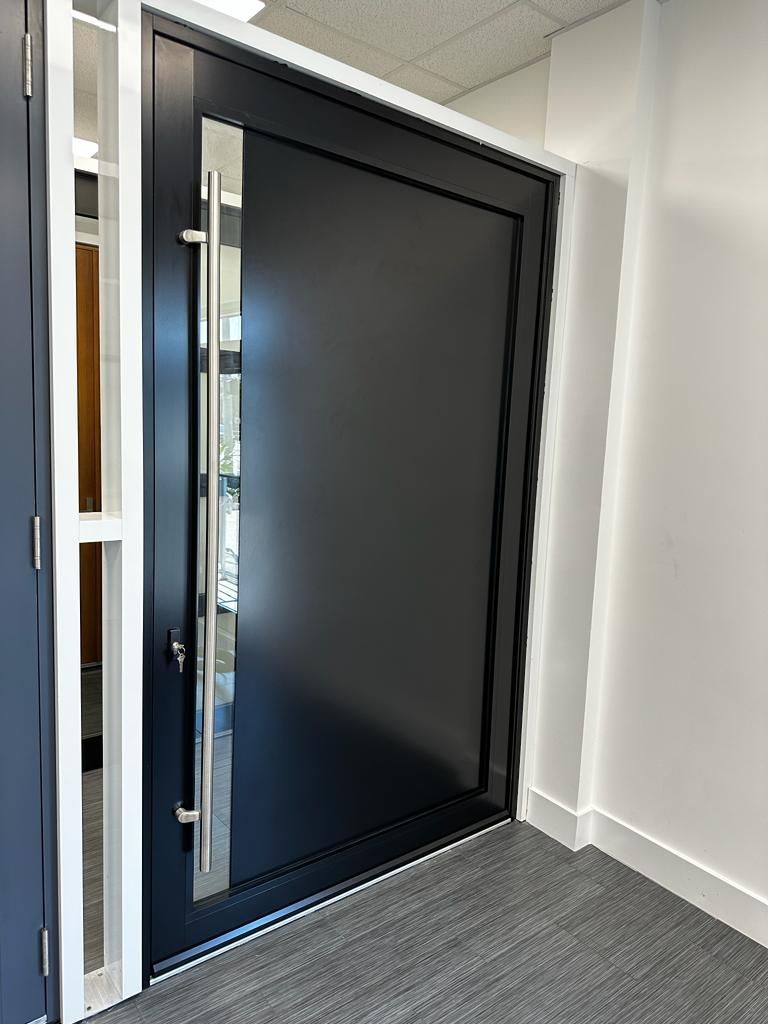

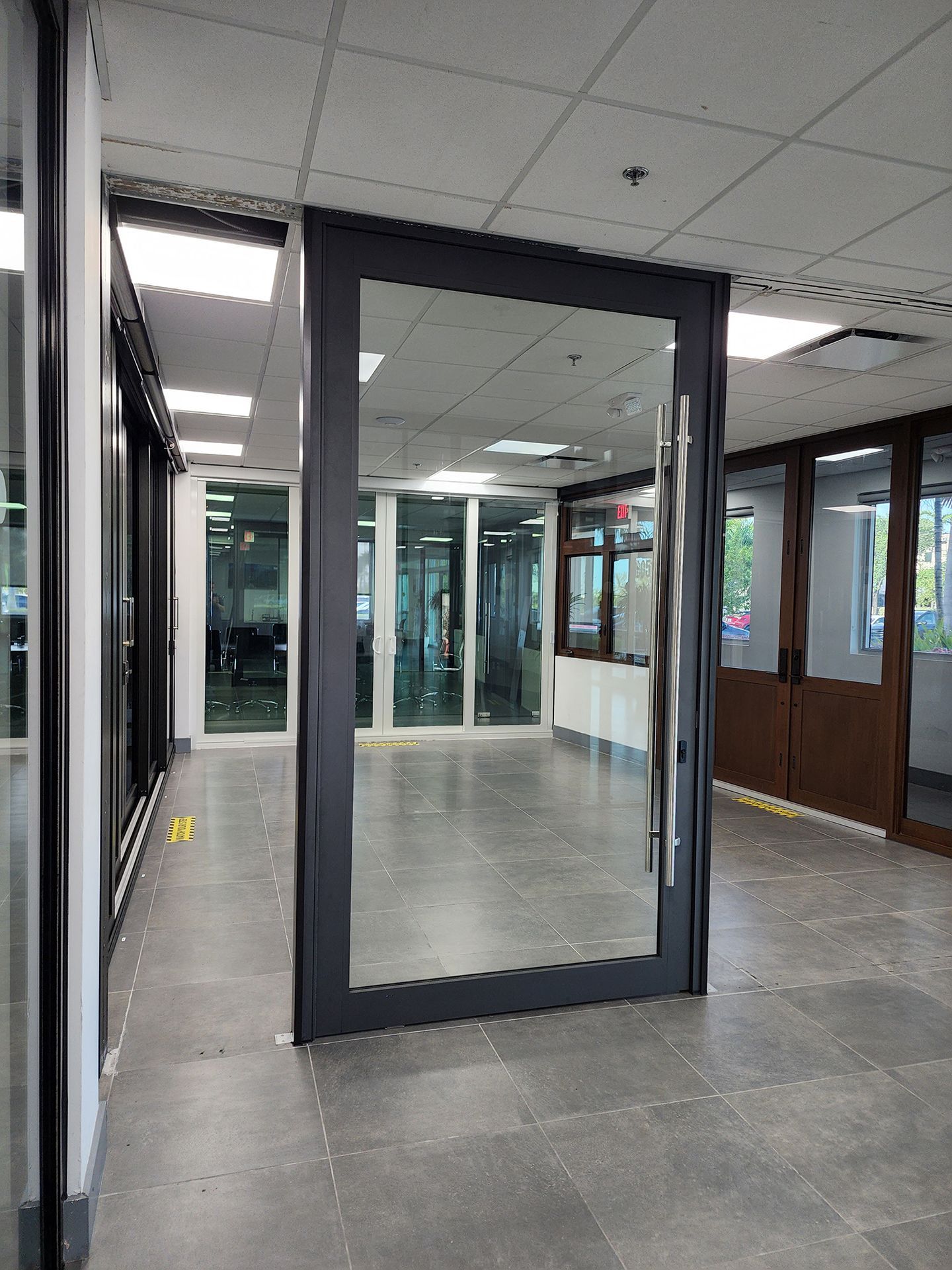

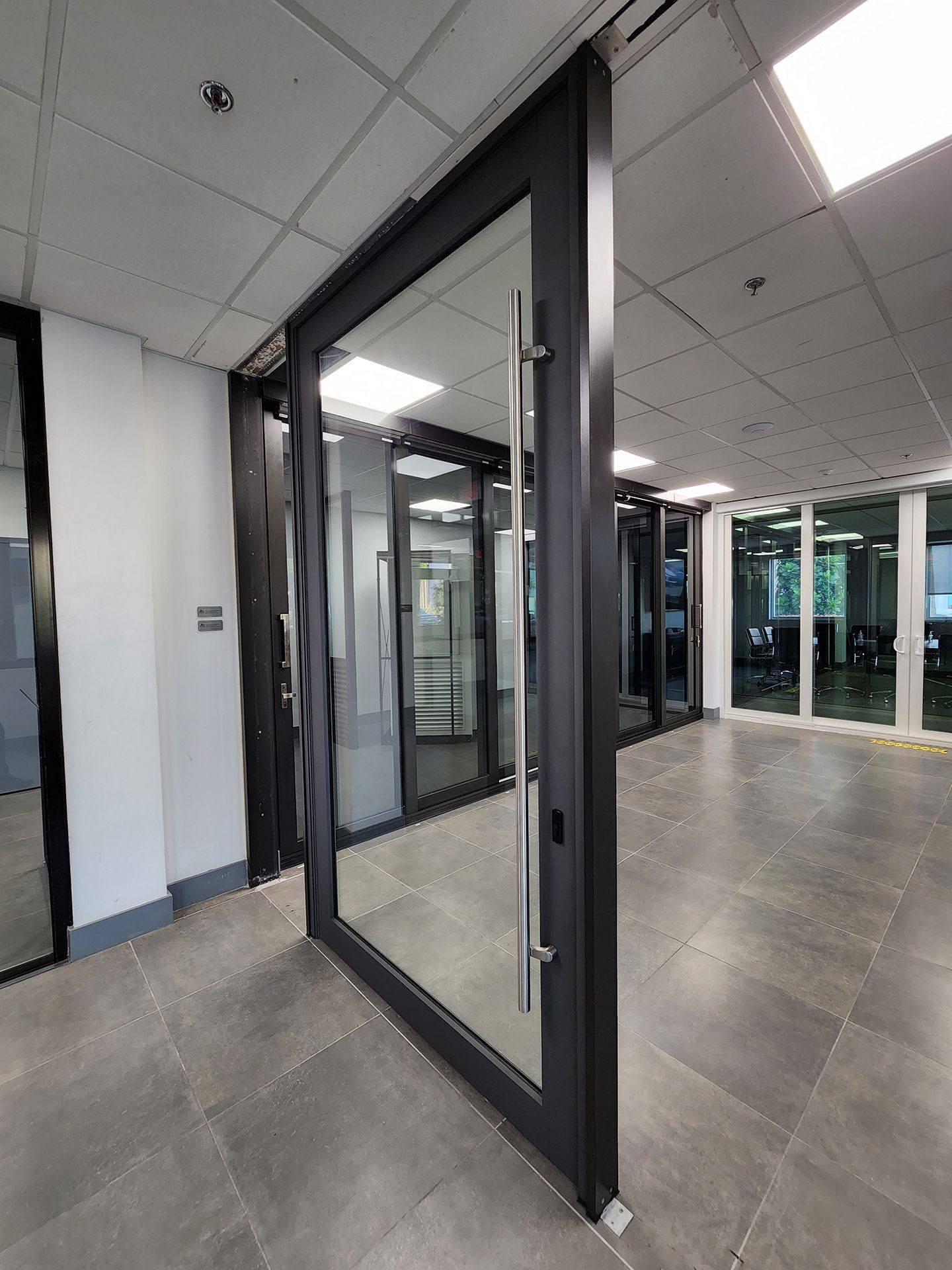

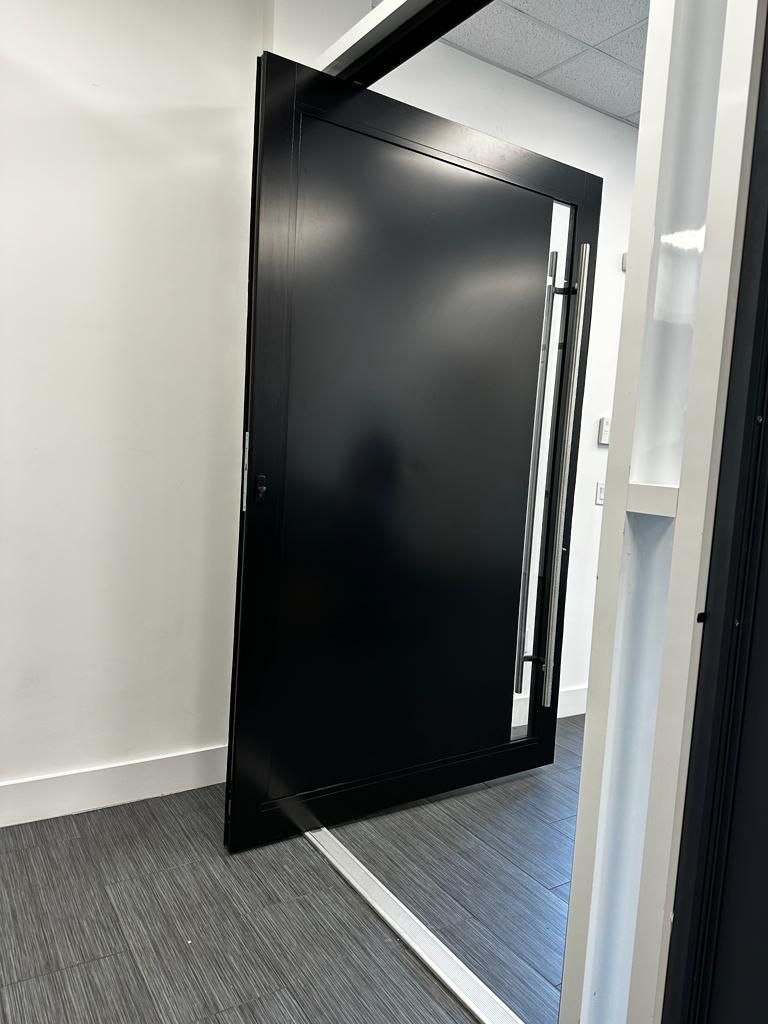

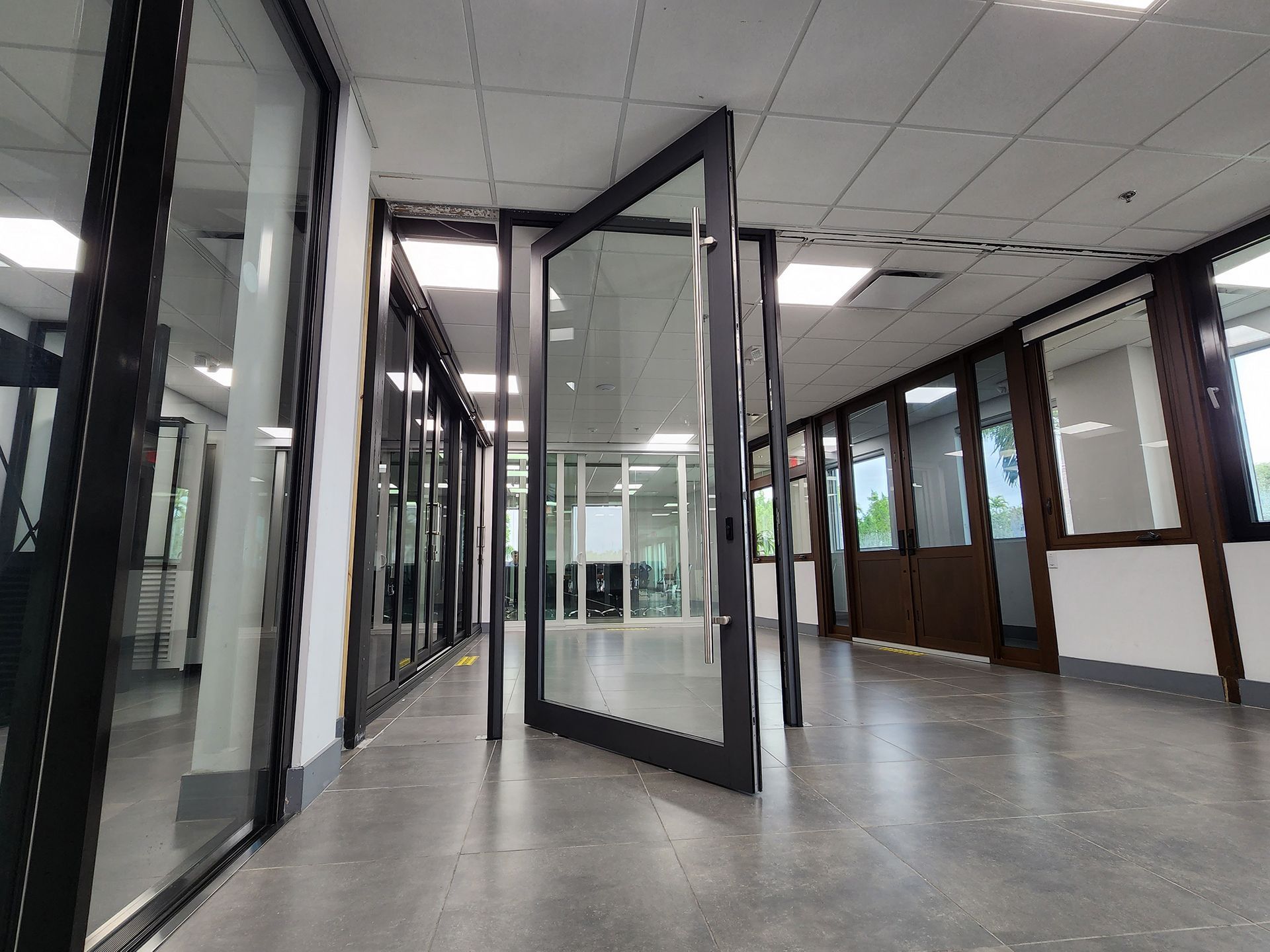

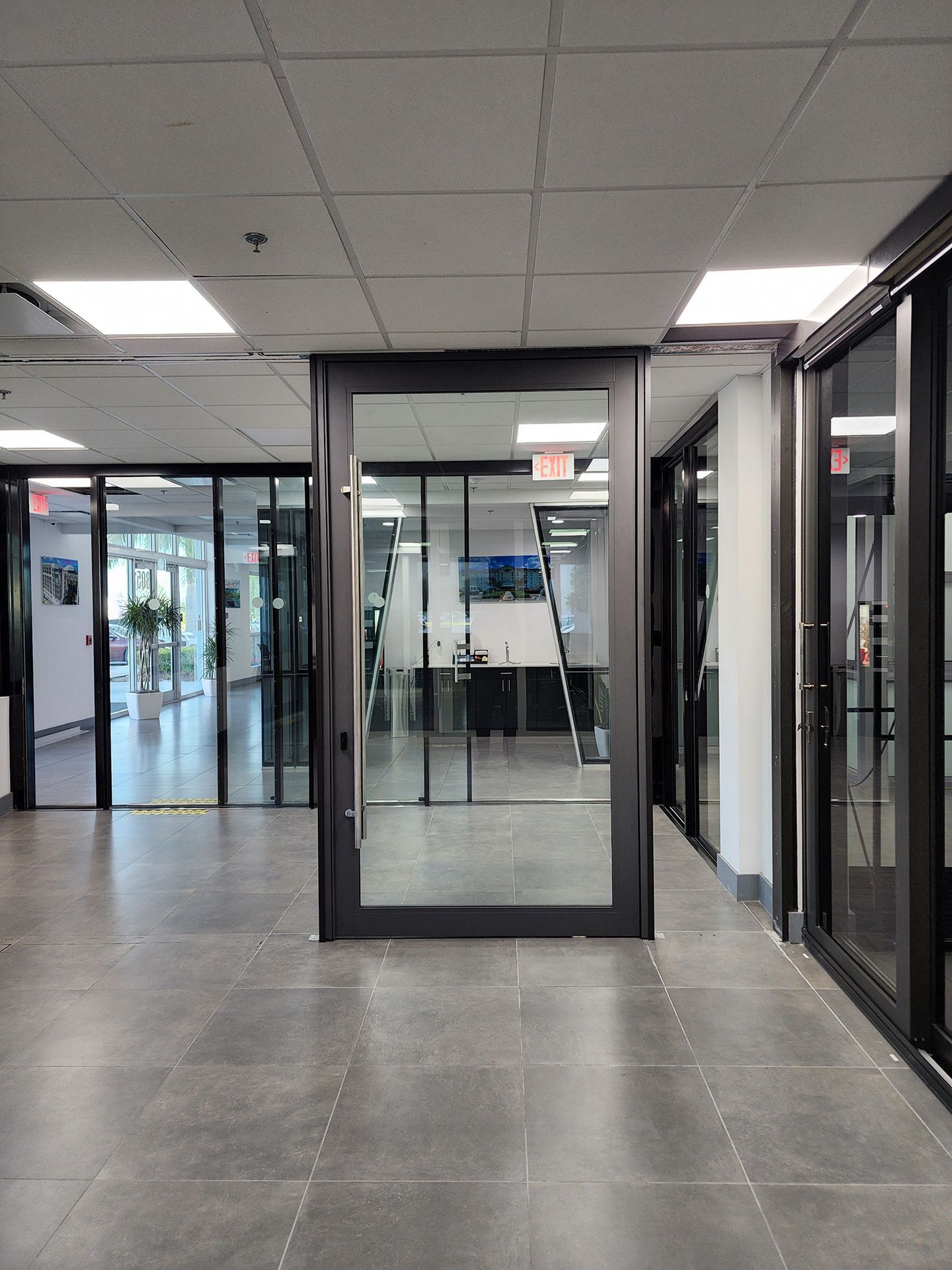

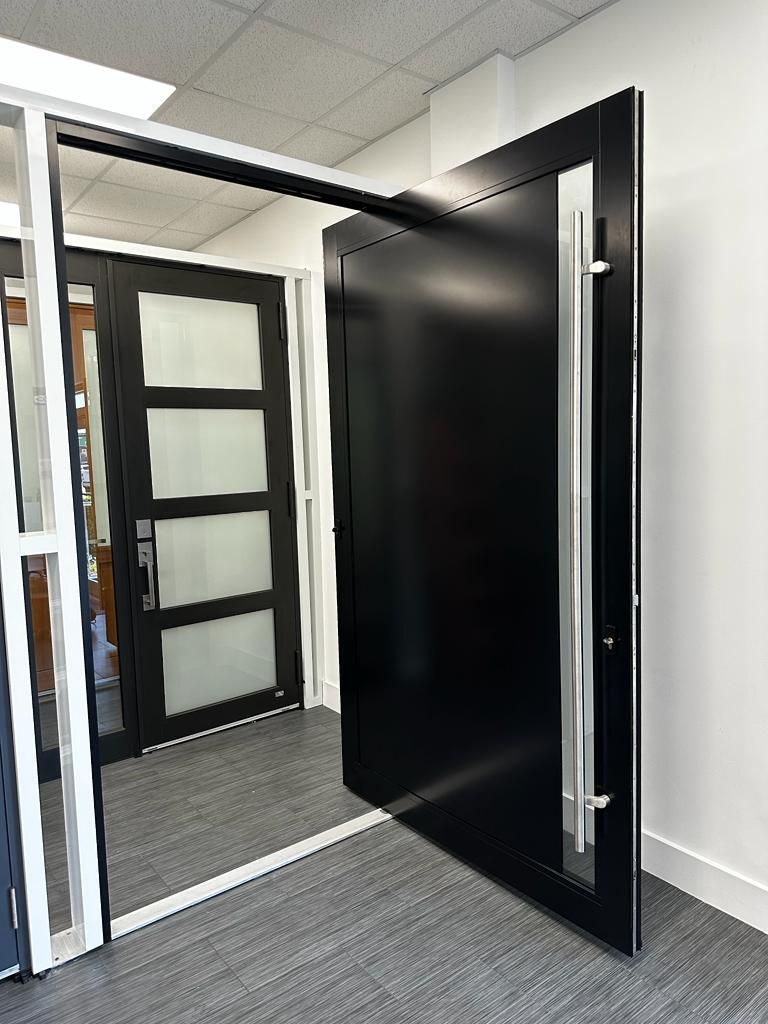

Impact Resistant Pivot Door

  • Meets Florida Building Code for High Velocity Hurricane Zone.
    Large Missile rated
  • Available configurations: X, XX, OX, OXO, OXXO, O
  • Maximum dimensions: X configuration: 48” x 120”, OXXO config: 156” x 98”
  • Side-lites with matching top and bottom horizontal lines
  • Stand along Single Side-lites available
  • High Bottom Rail Door available
  • Aluminum, Ball-Bearing (Stainless Steel) and Continuous Aluminum Geared Hinges available
  • Max. Design pressures: +/-80 PSF
  • Glazing capabilities 7/16” laminated and 1” insulated laminated.
    Enhanced thermal performance with low E coating available
  • Multiple glass lites per door panel (intermediate horizontals) allowing combinations of privacy, clear or tinted glass
  • Powder Coating aluminum finish. Meets AAMA 2604 exigencies (5-year warranty) AAMA 2605 is also available (10-year warranty)

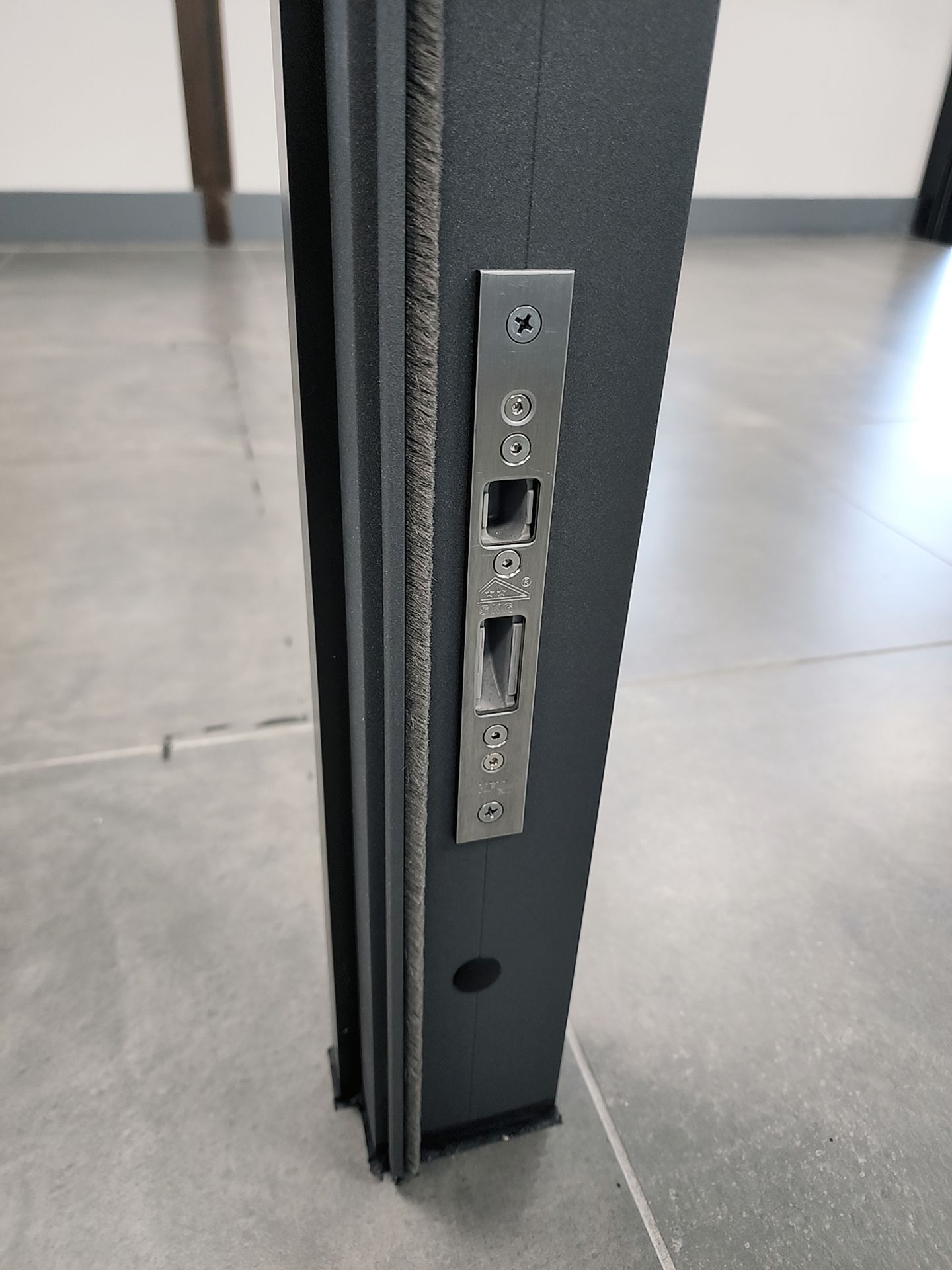

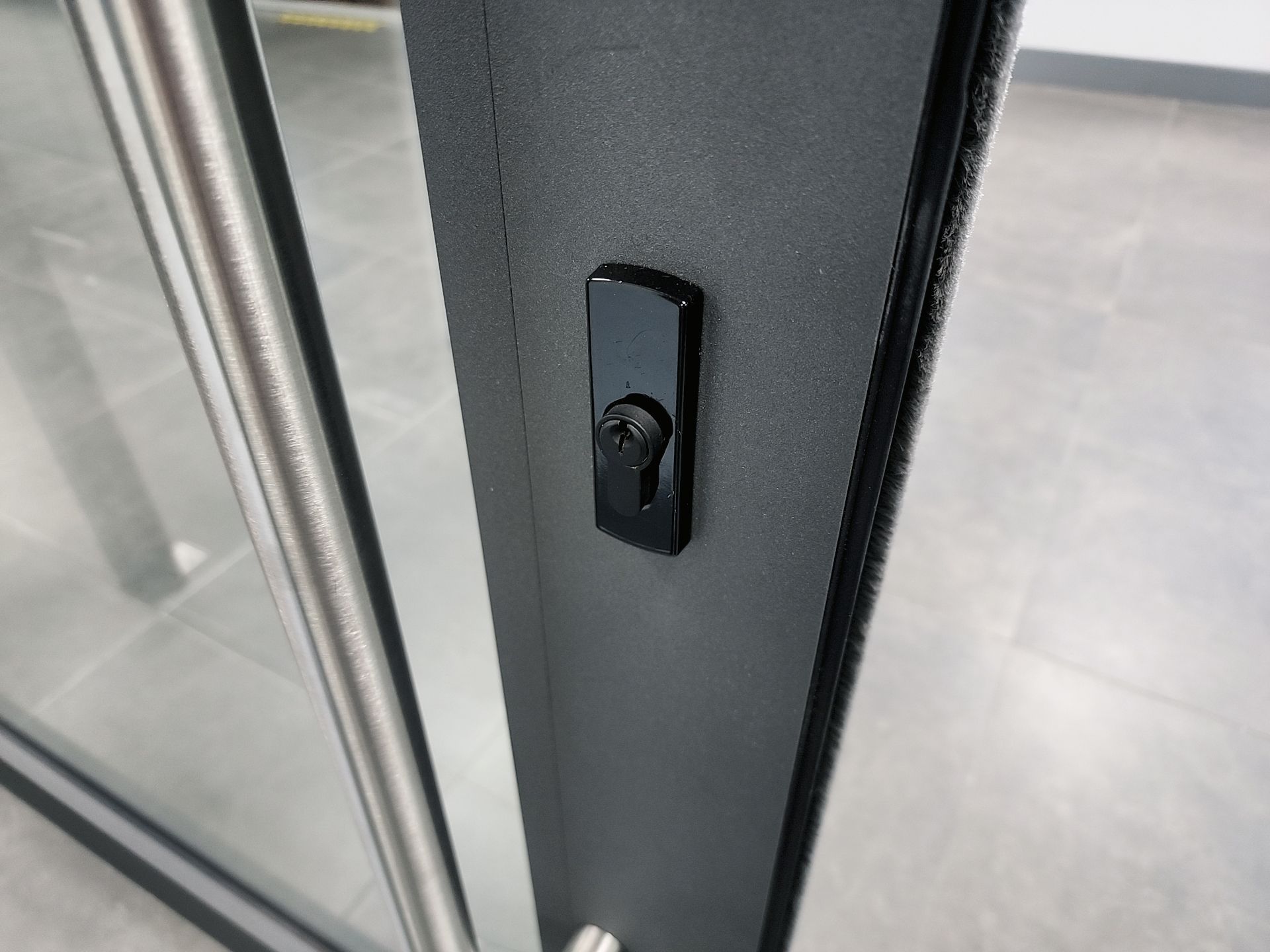

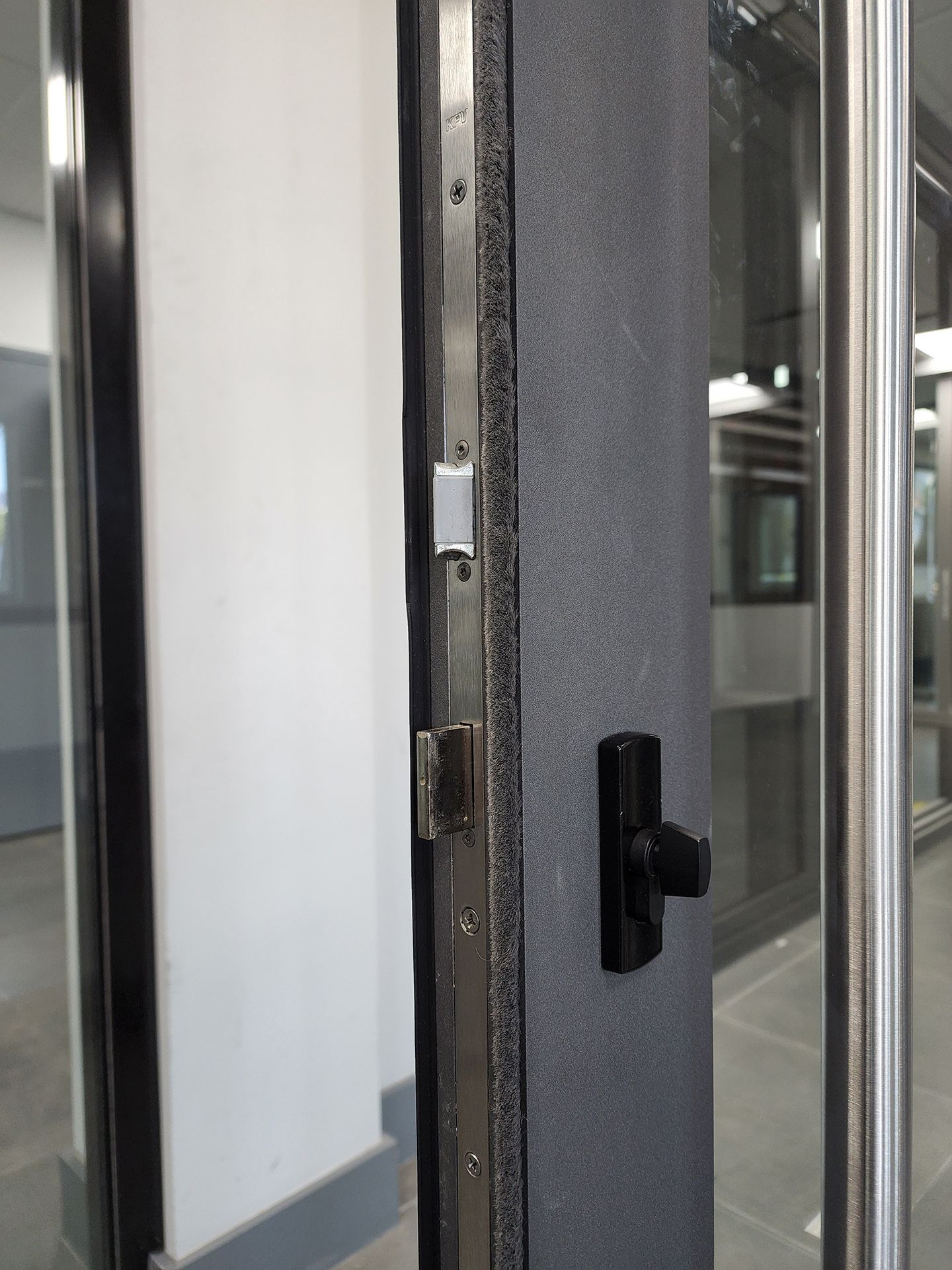

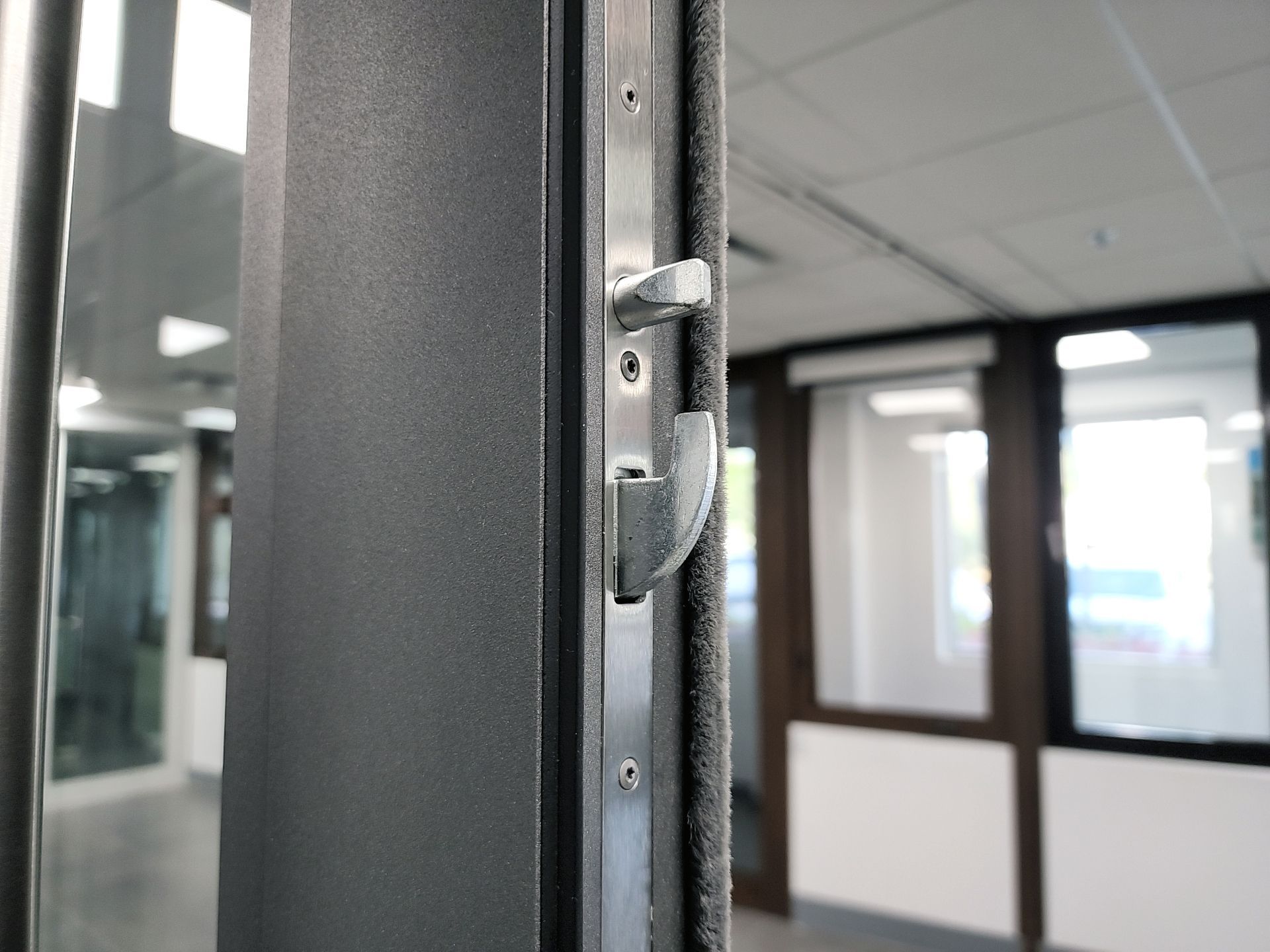

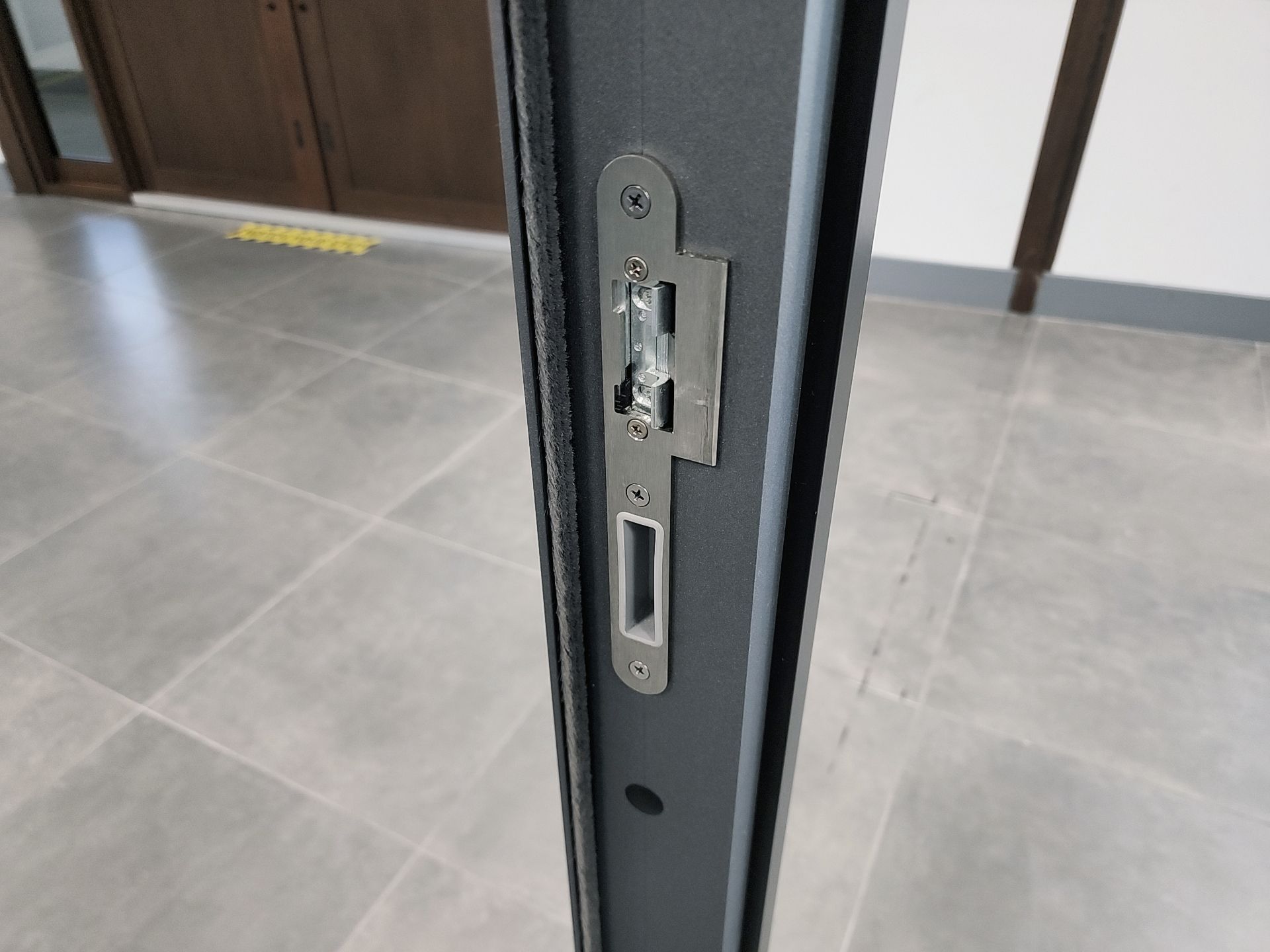

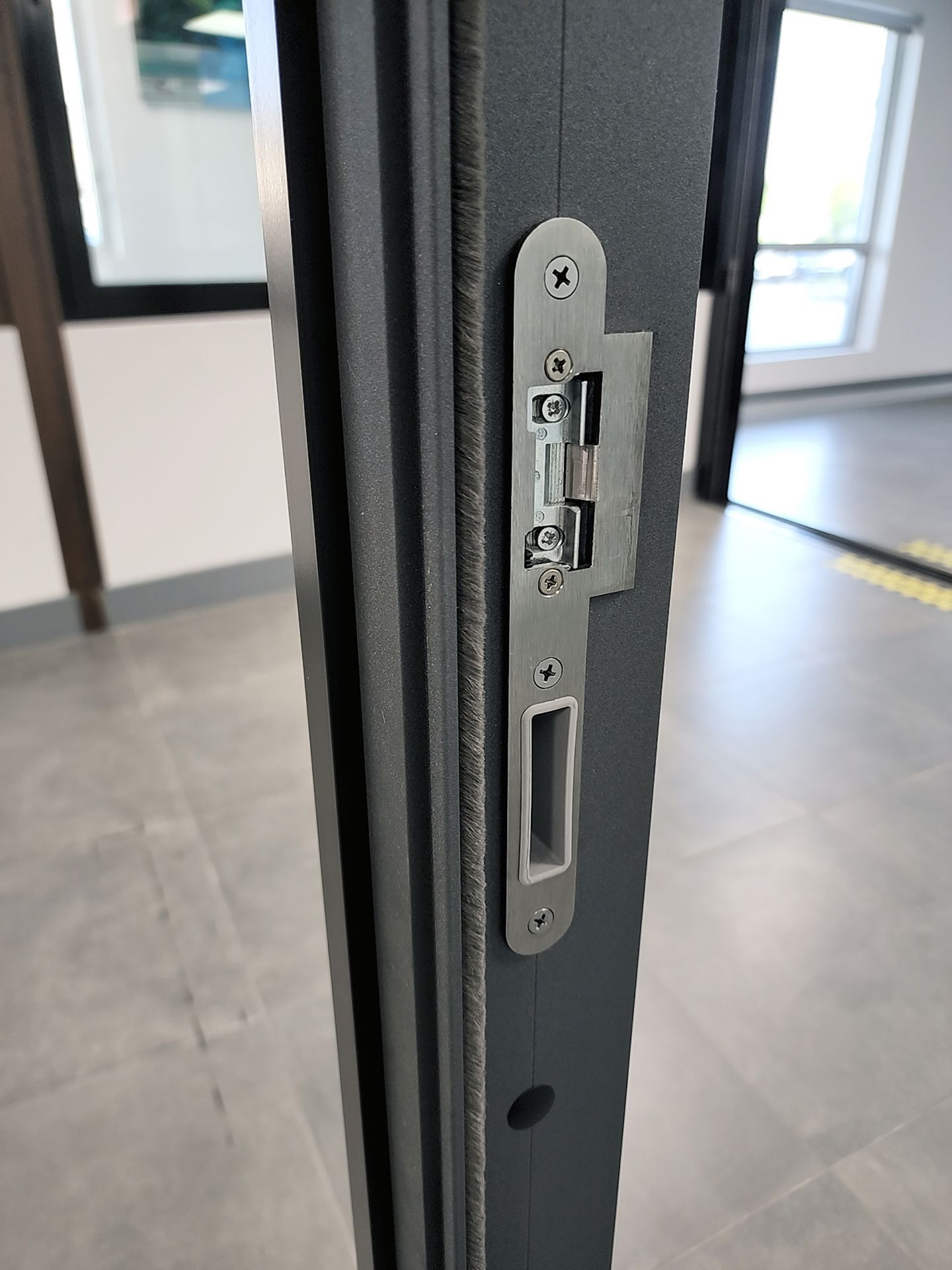

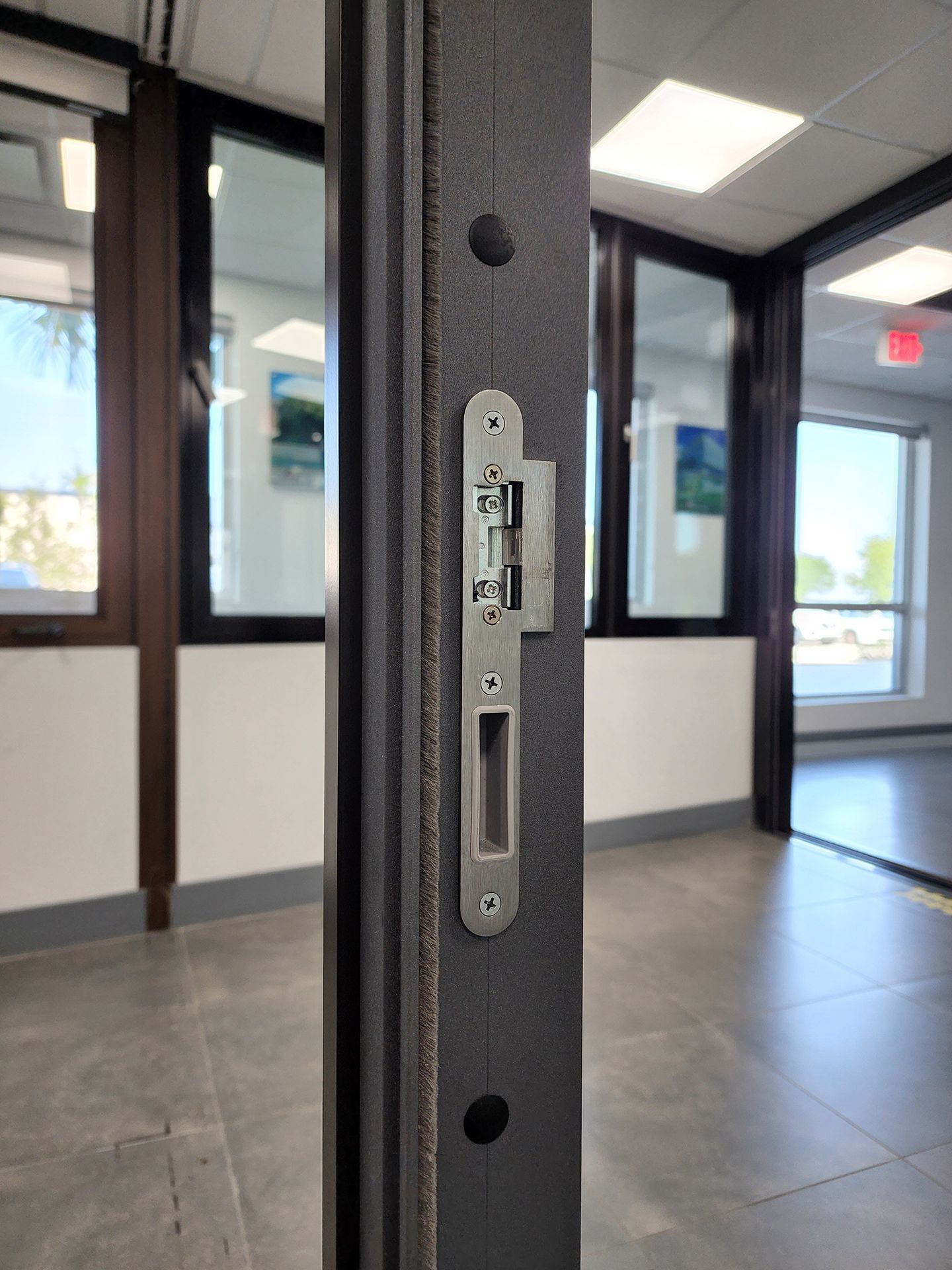

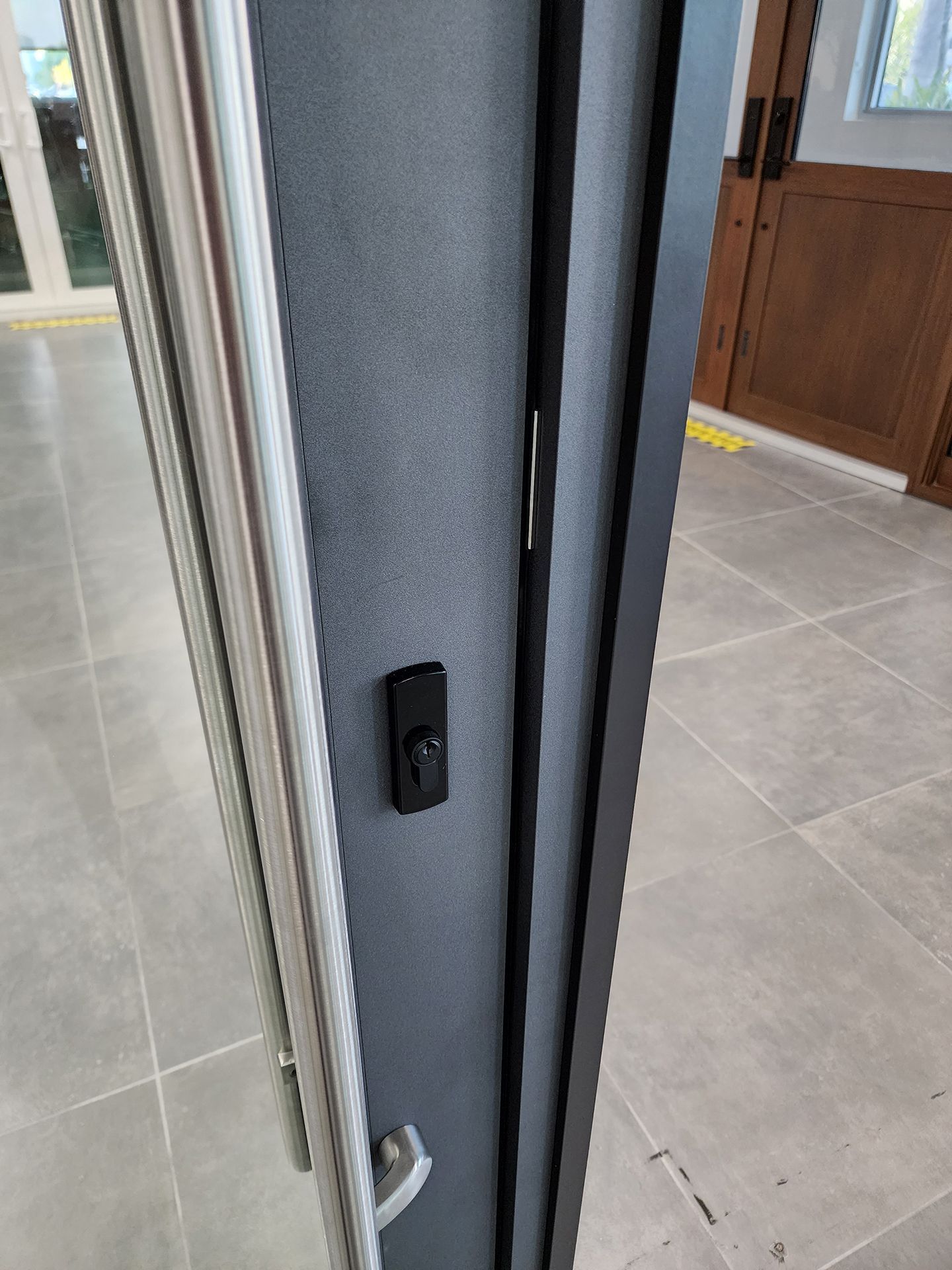

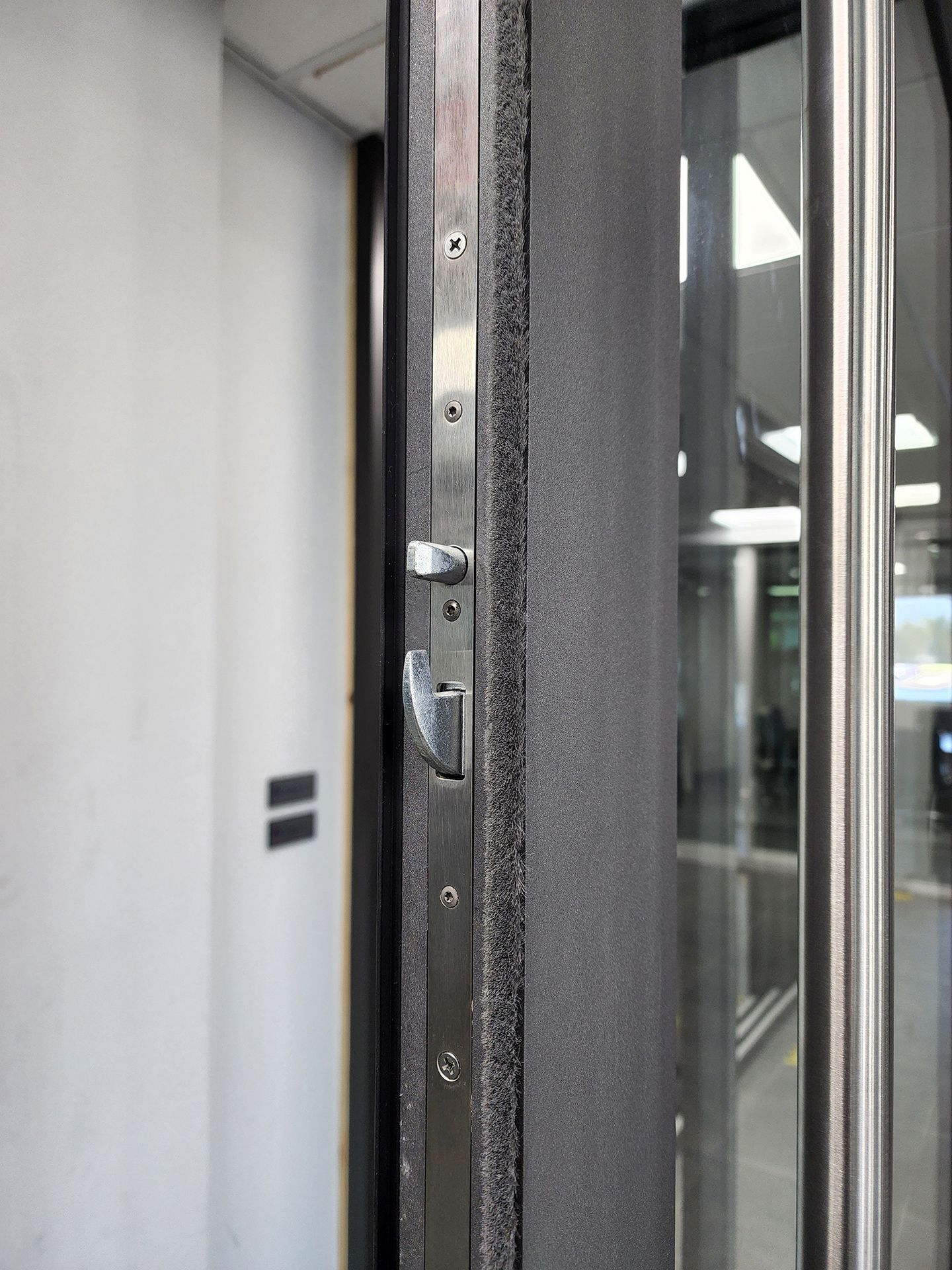

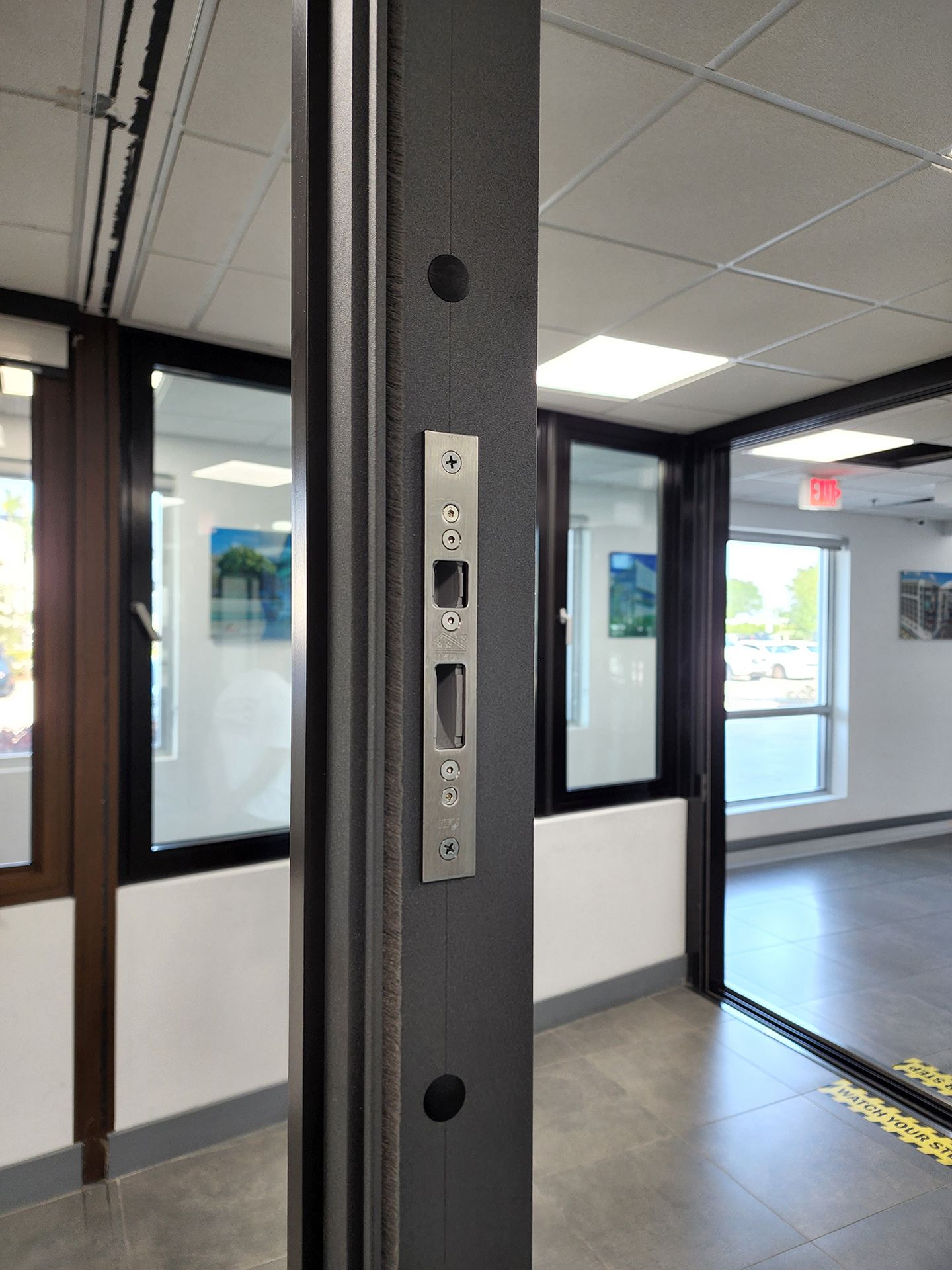

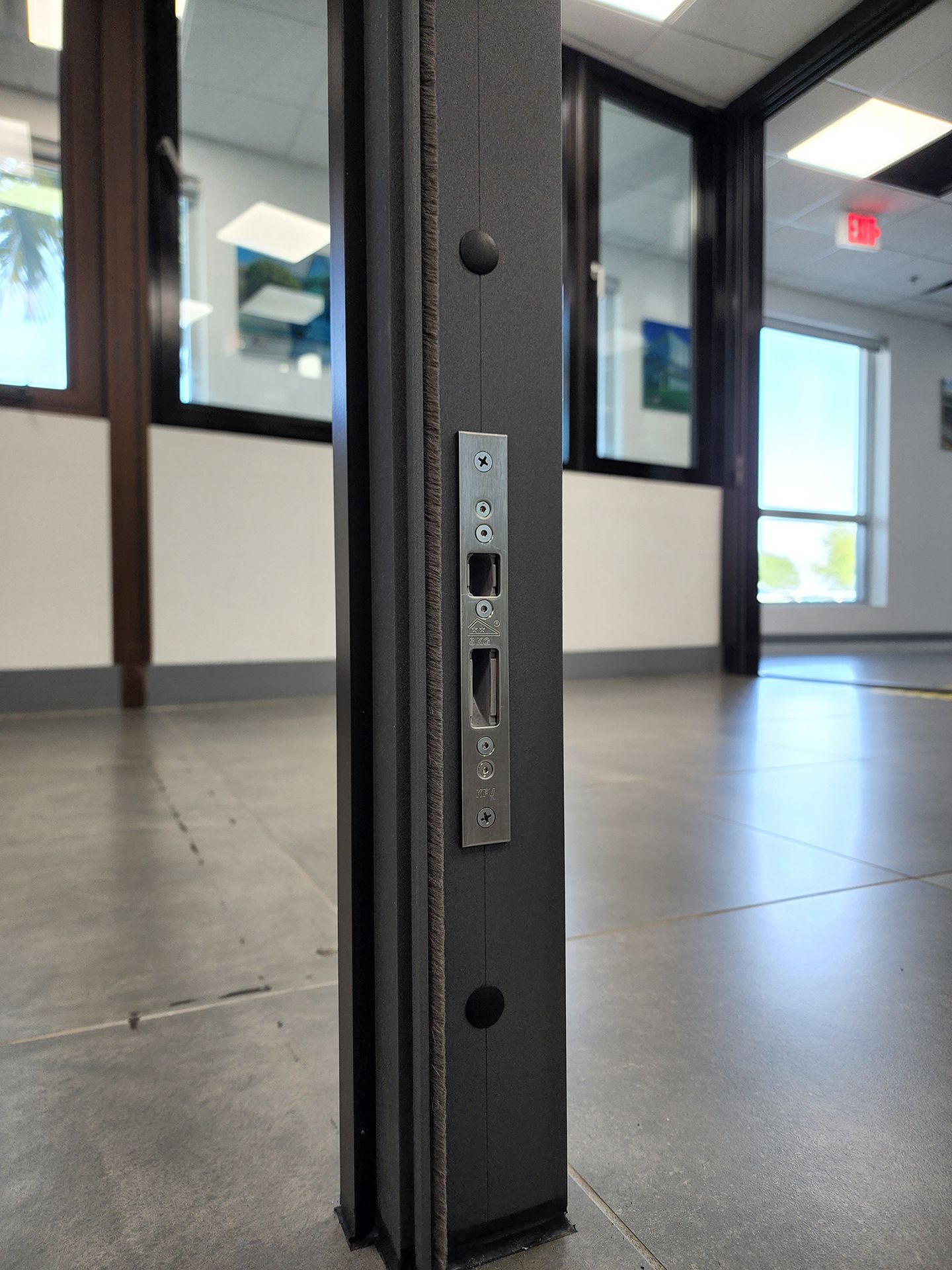

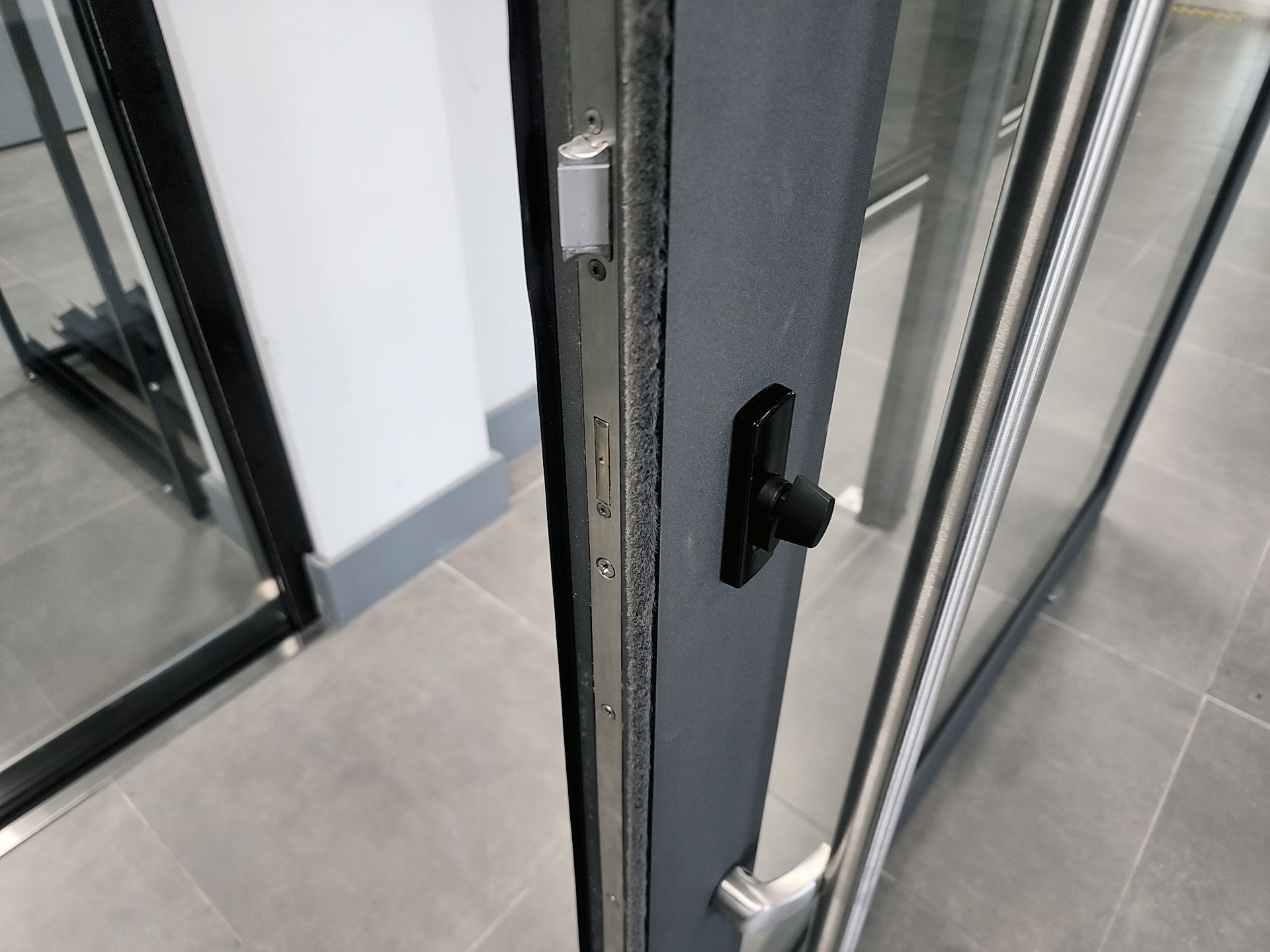

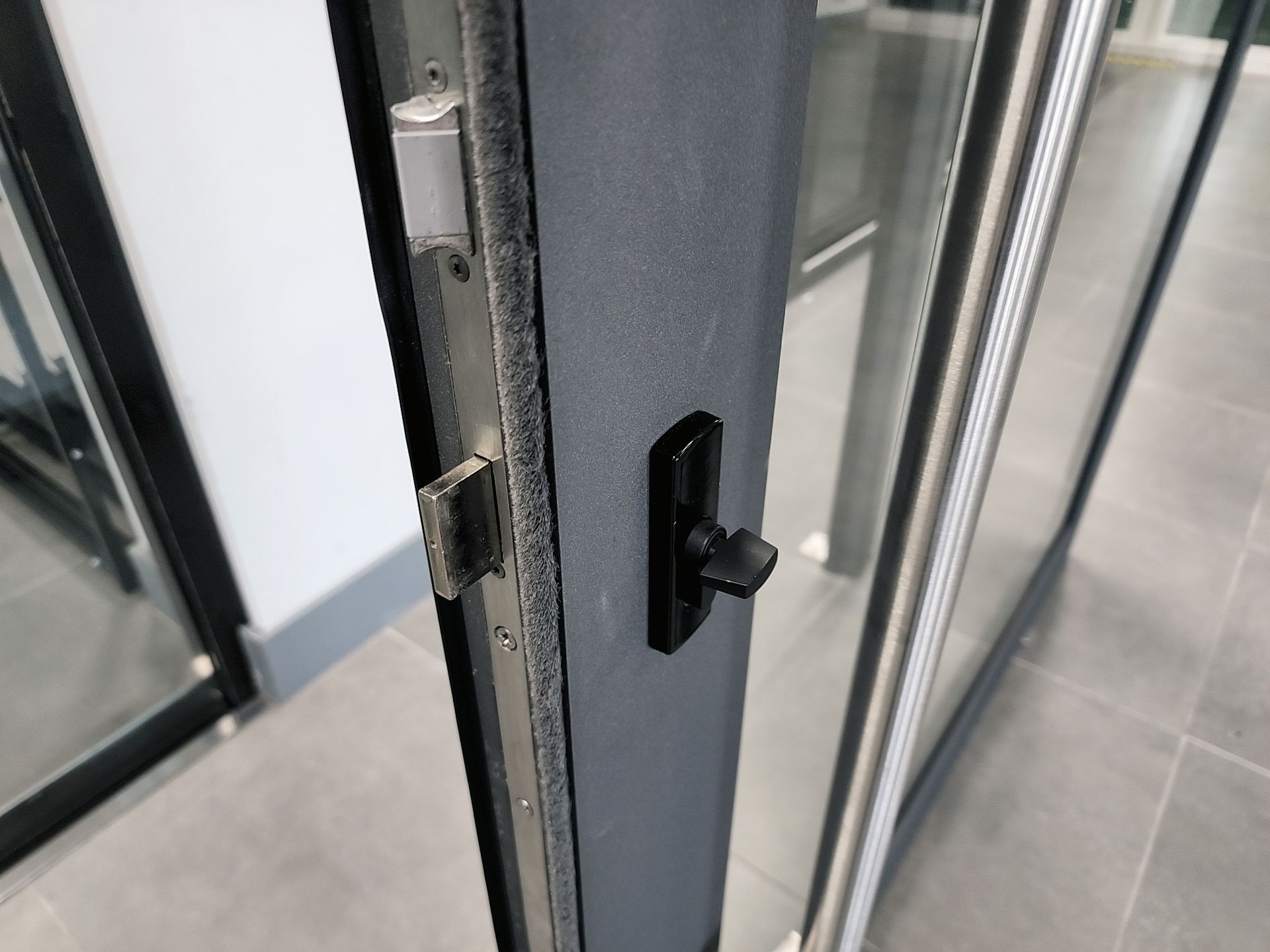

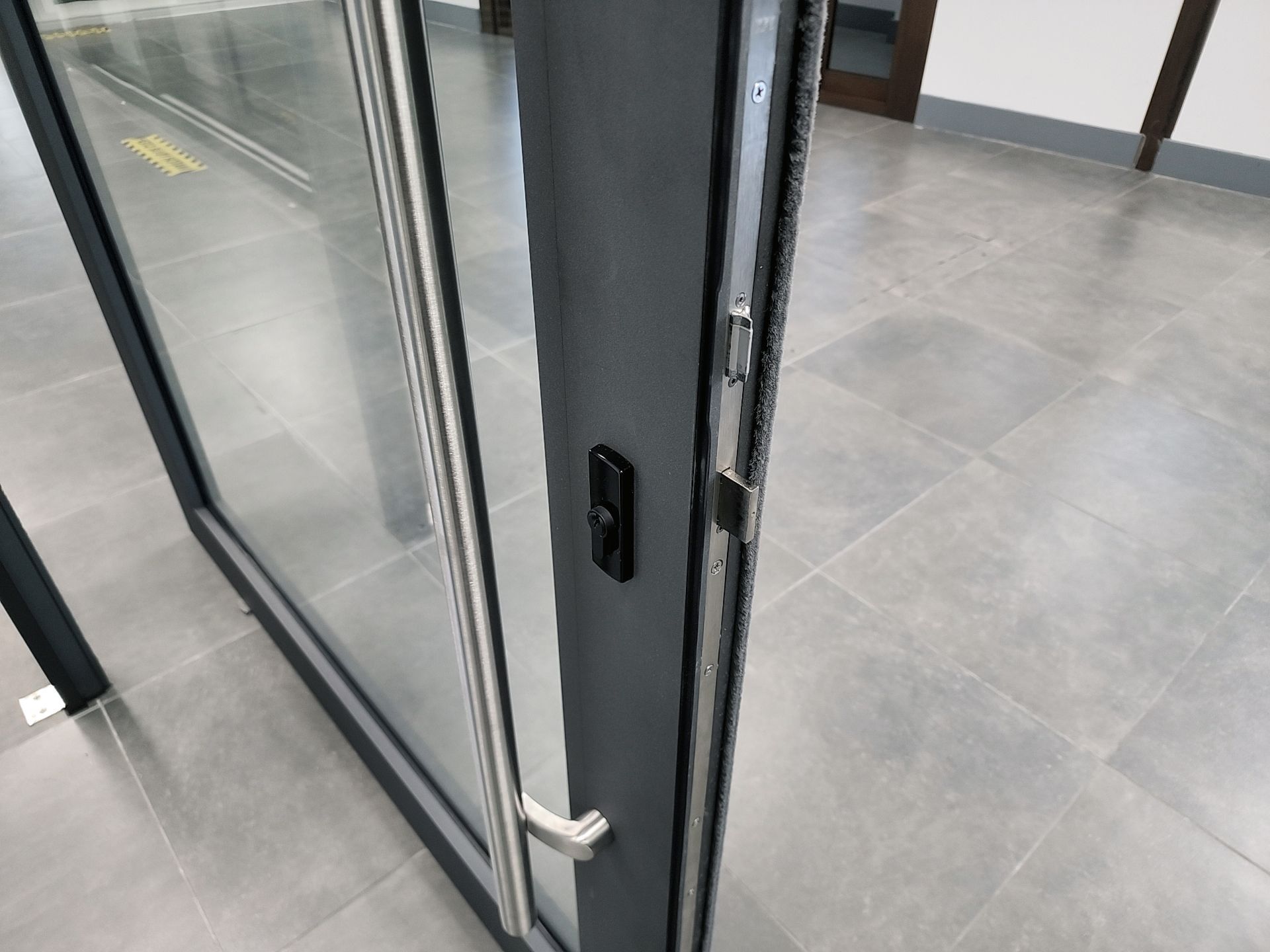

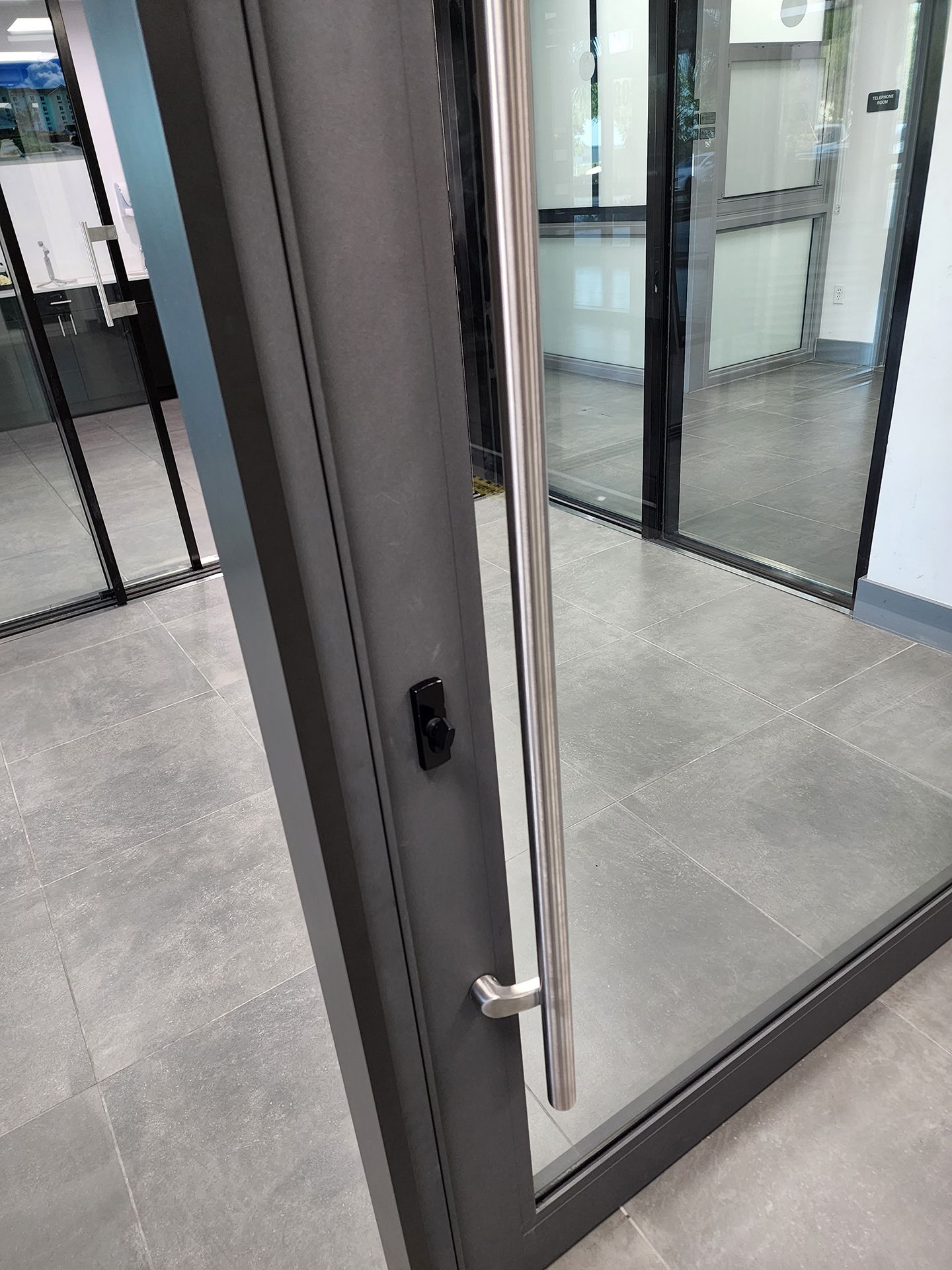

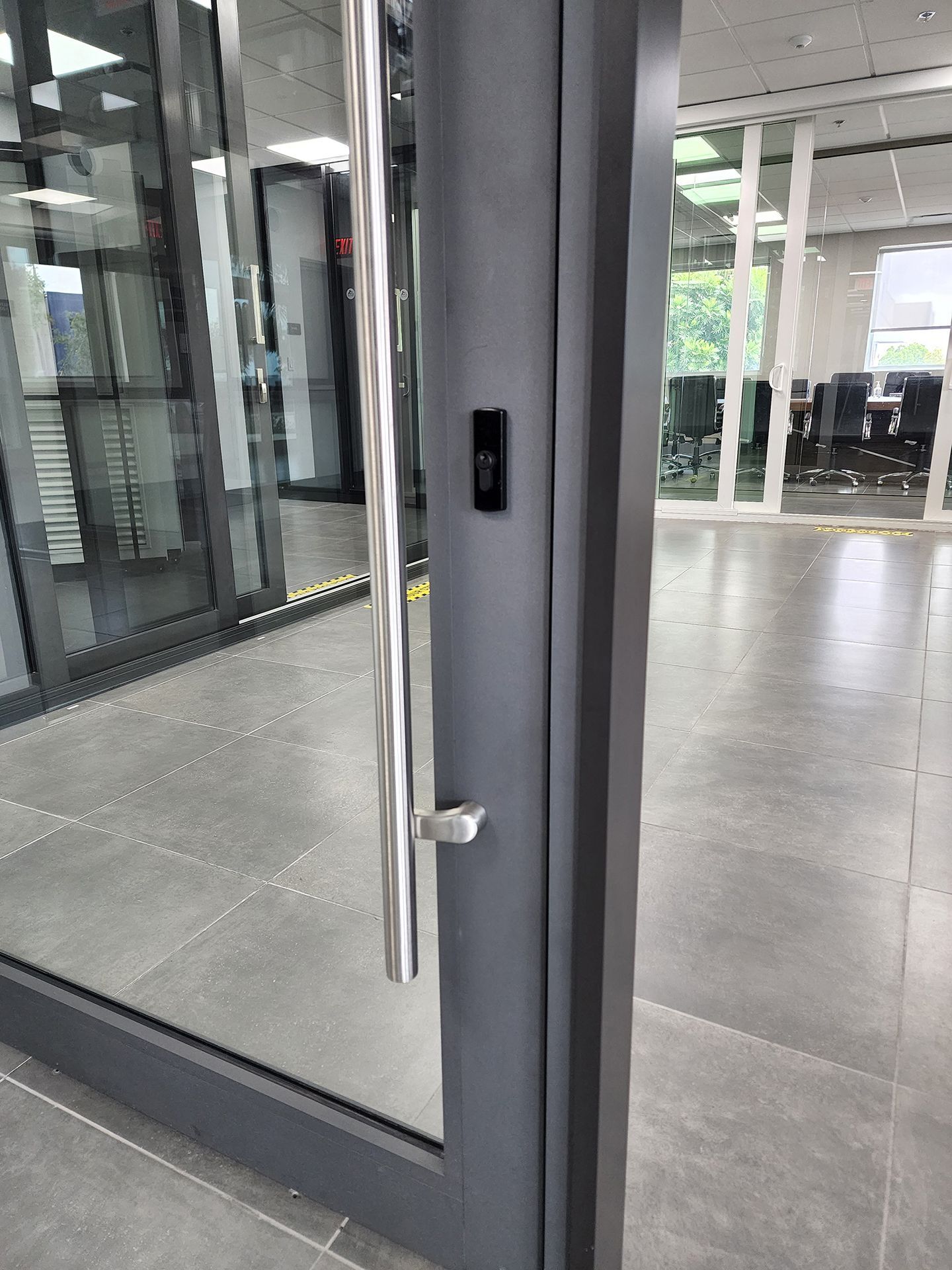

  • Industry Standard Hardware preparation: options for 3 Point Locks and Smart Locks

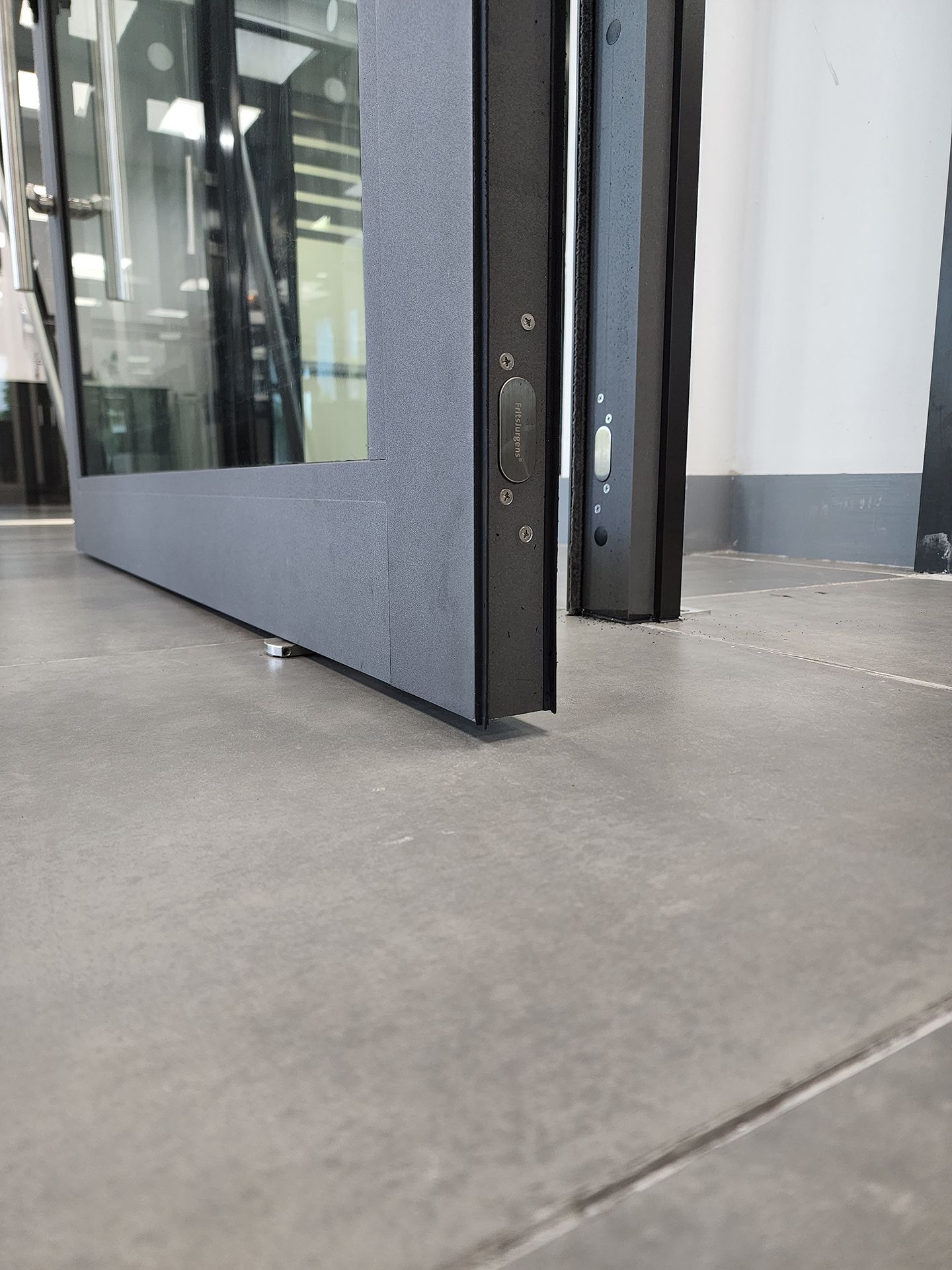

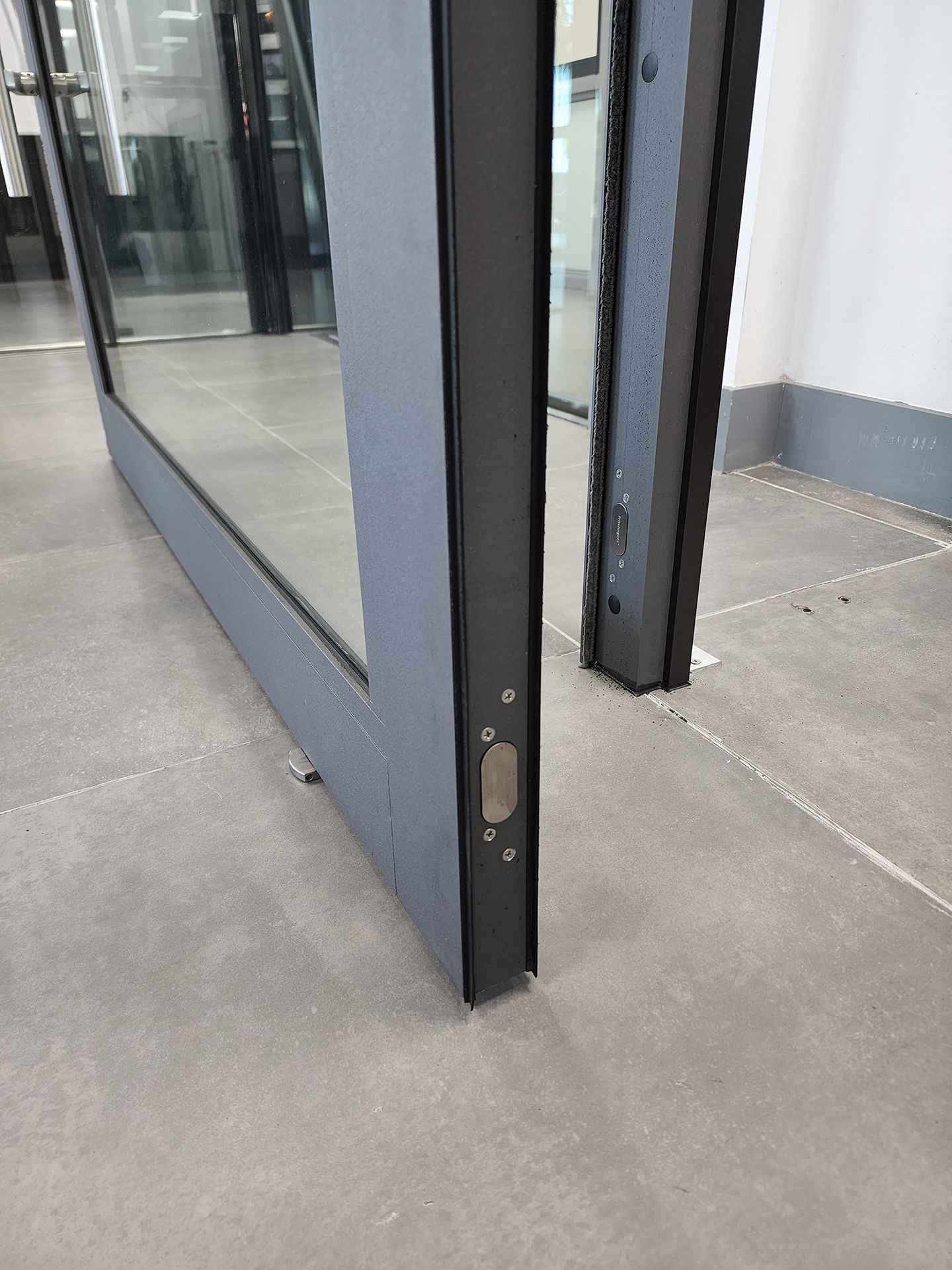

  • Flush Bolts at top and bottom
  • Muntins and Raised Grid for design freedom
