Series MG-2530

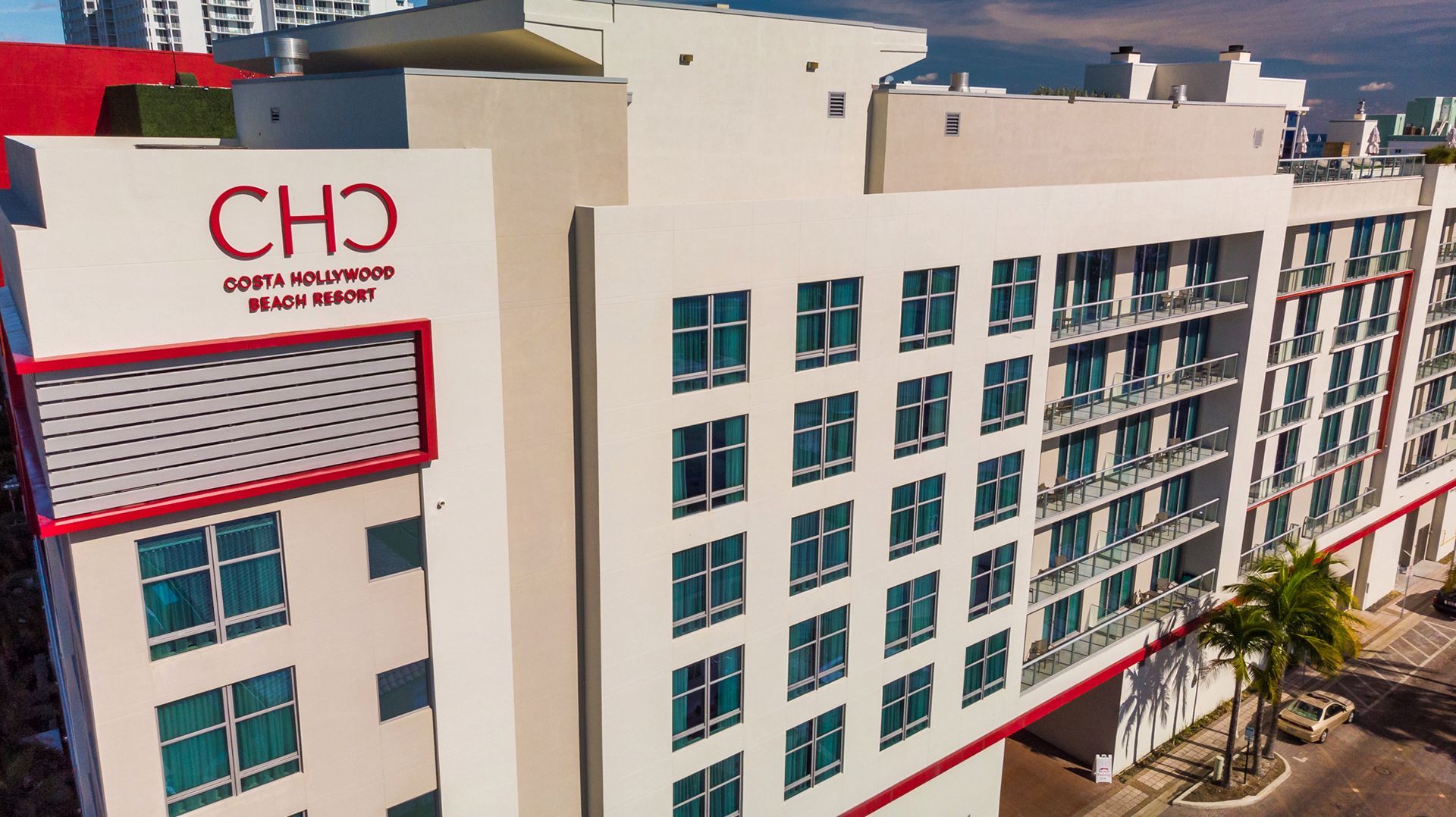

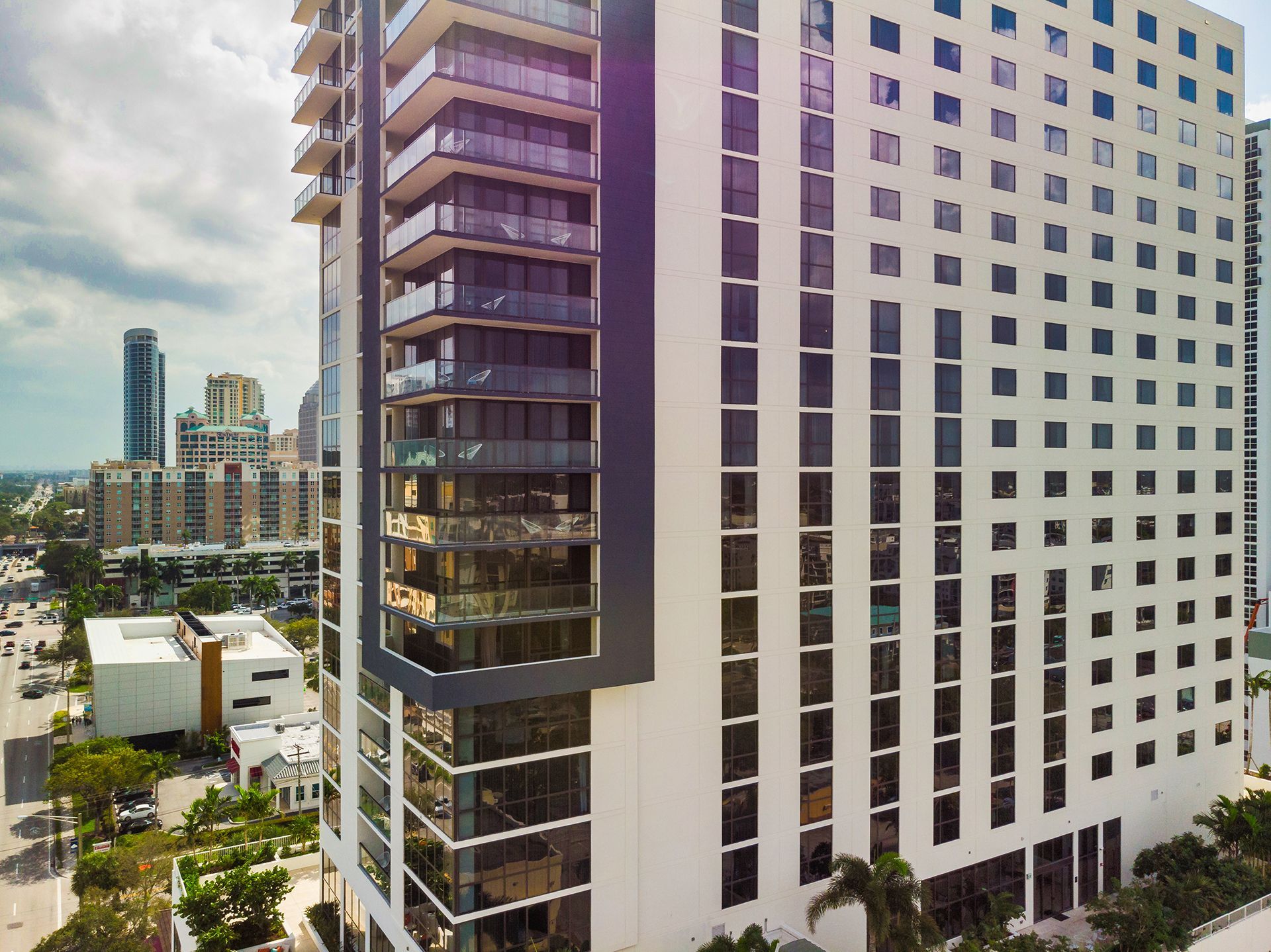

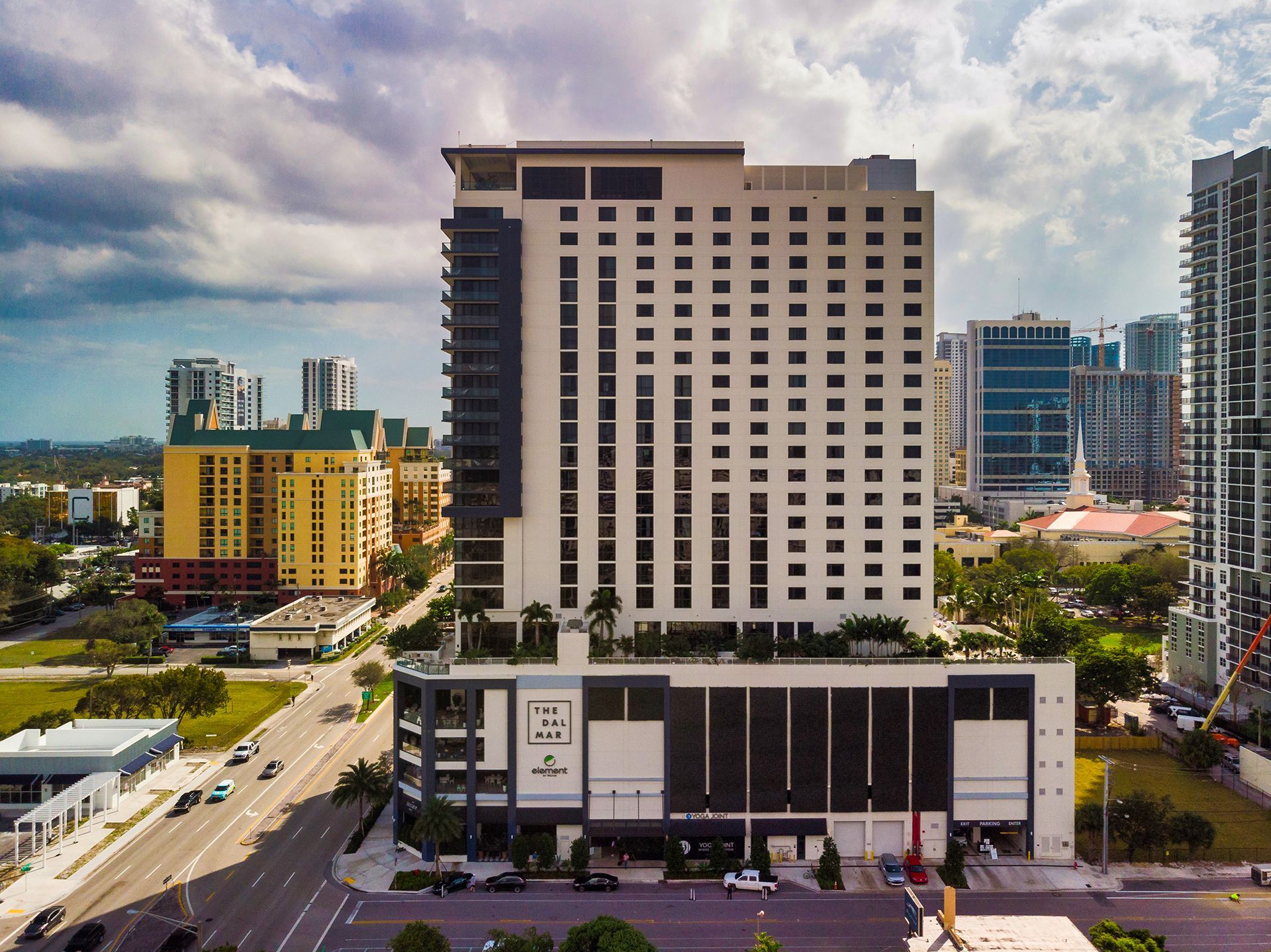

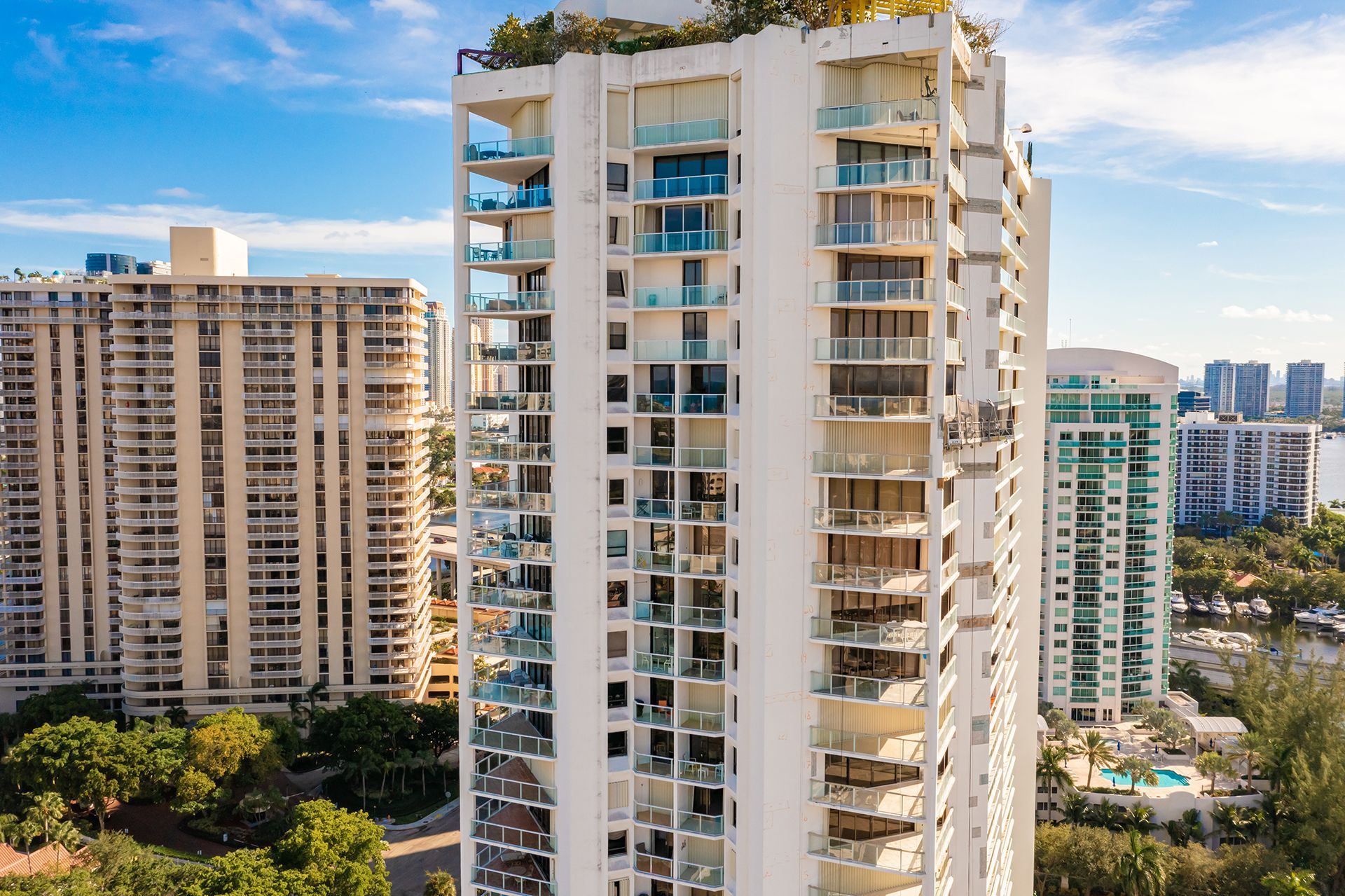

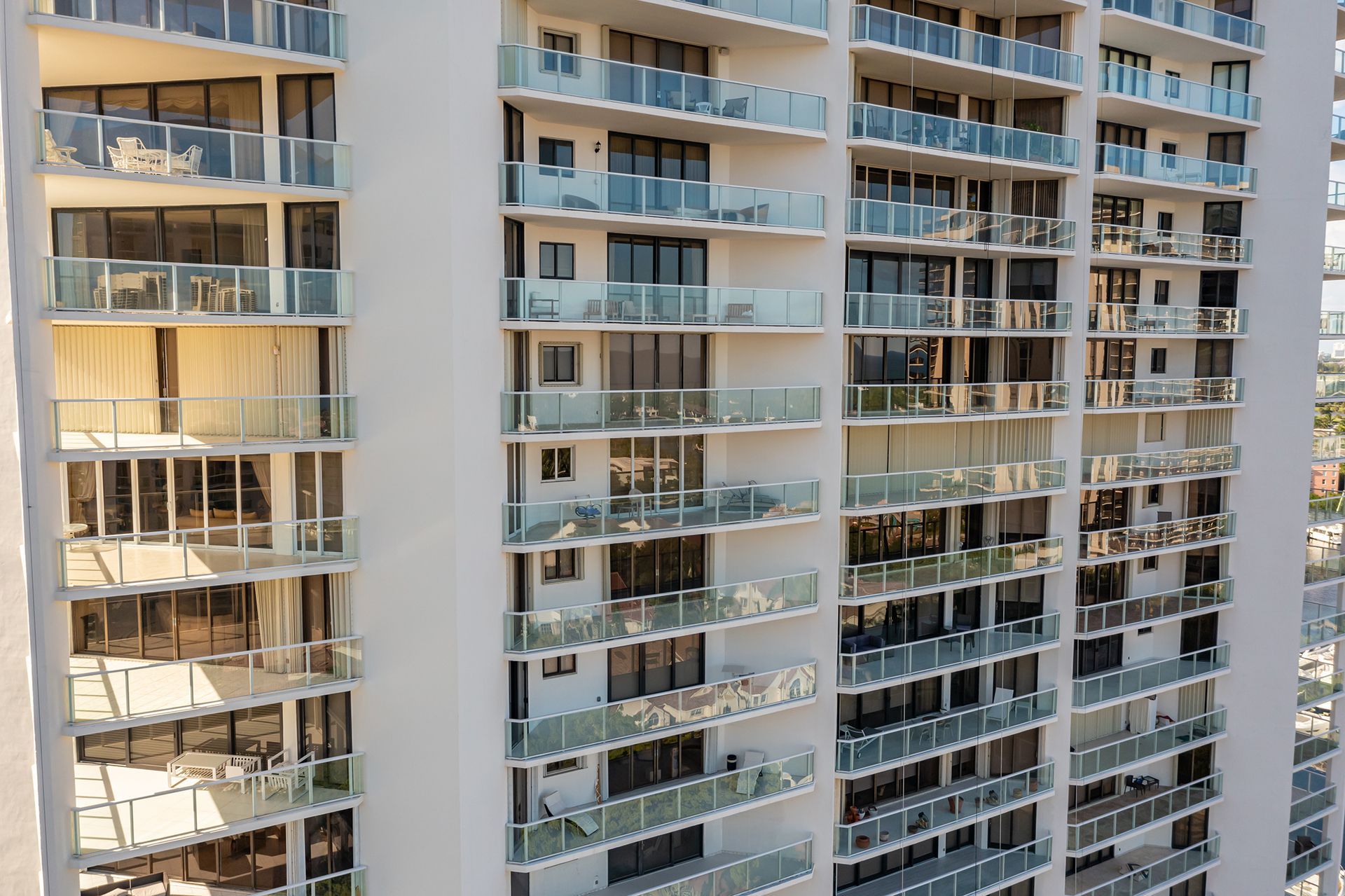

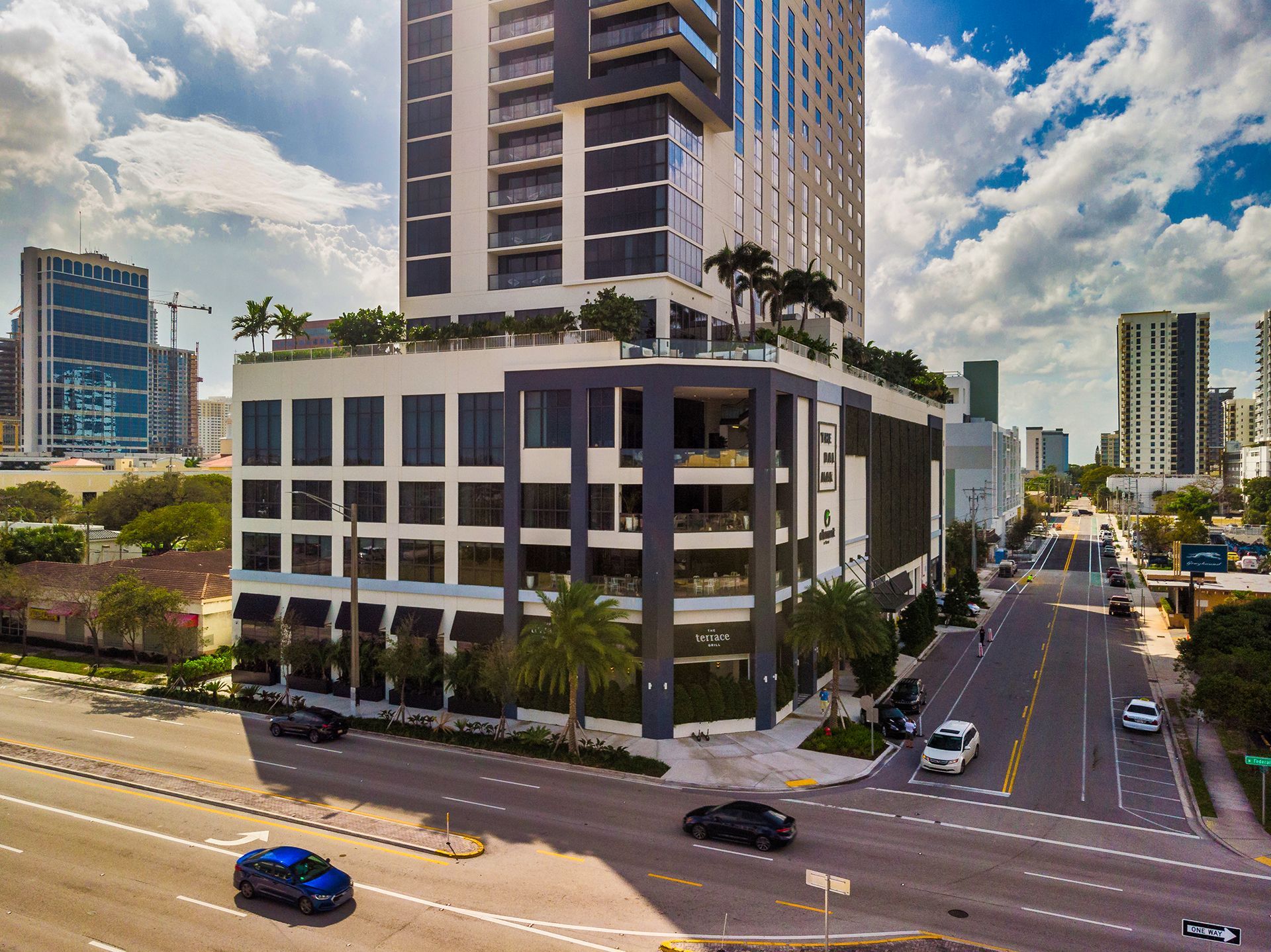

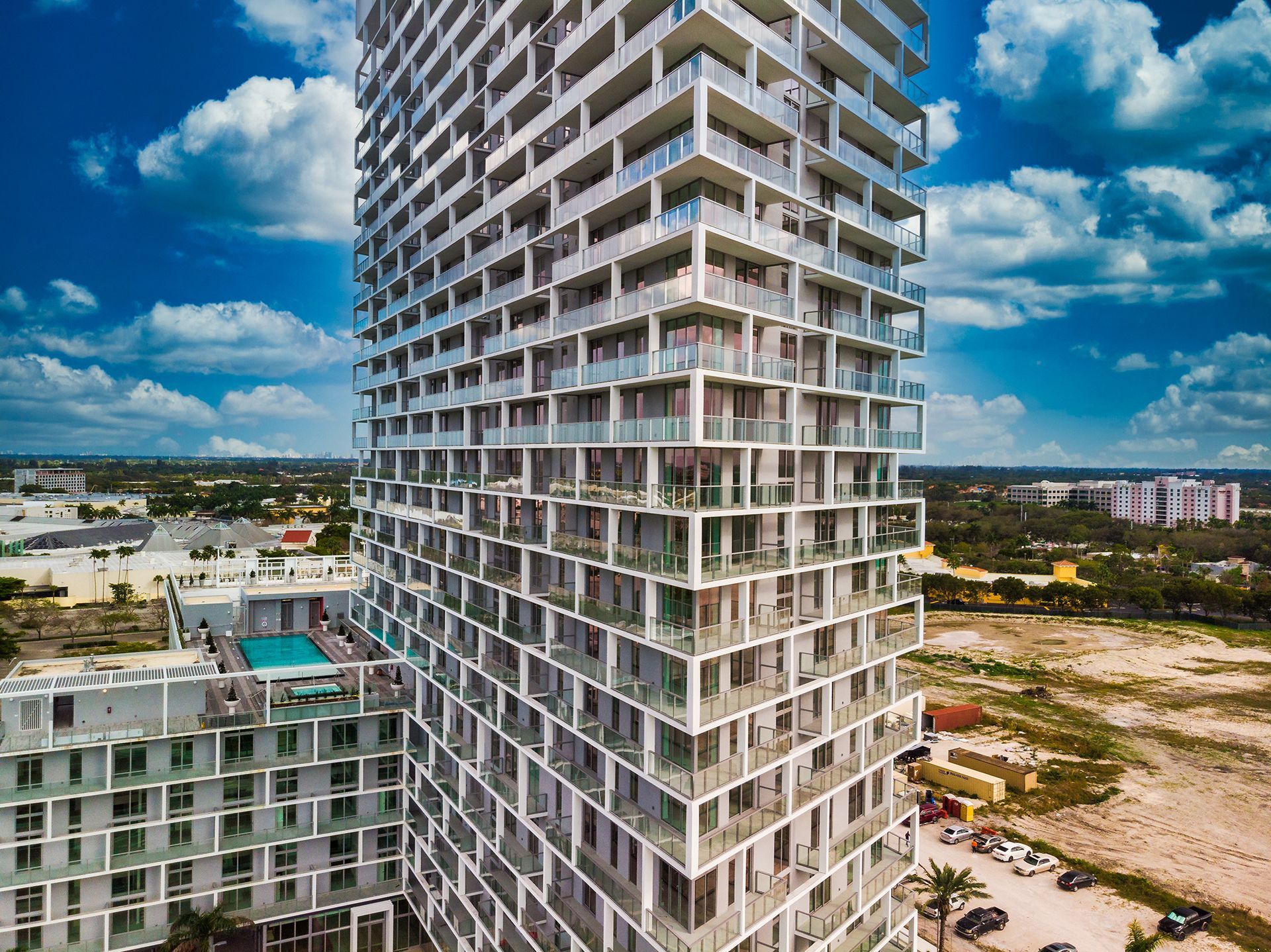

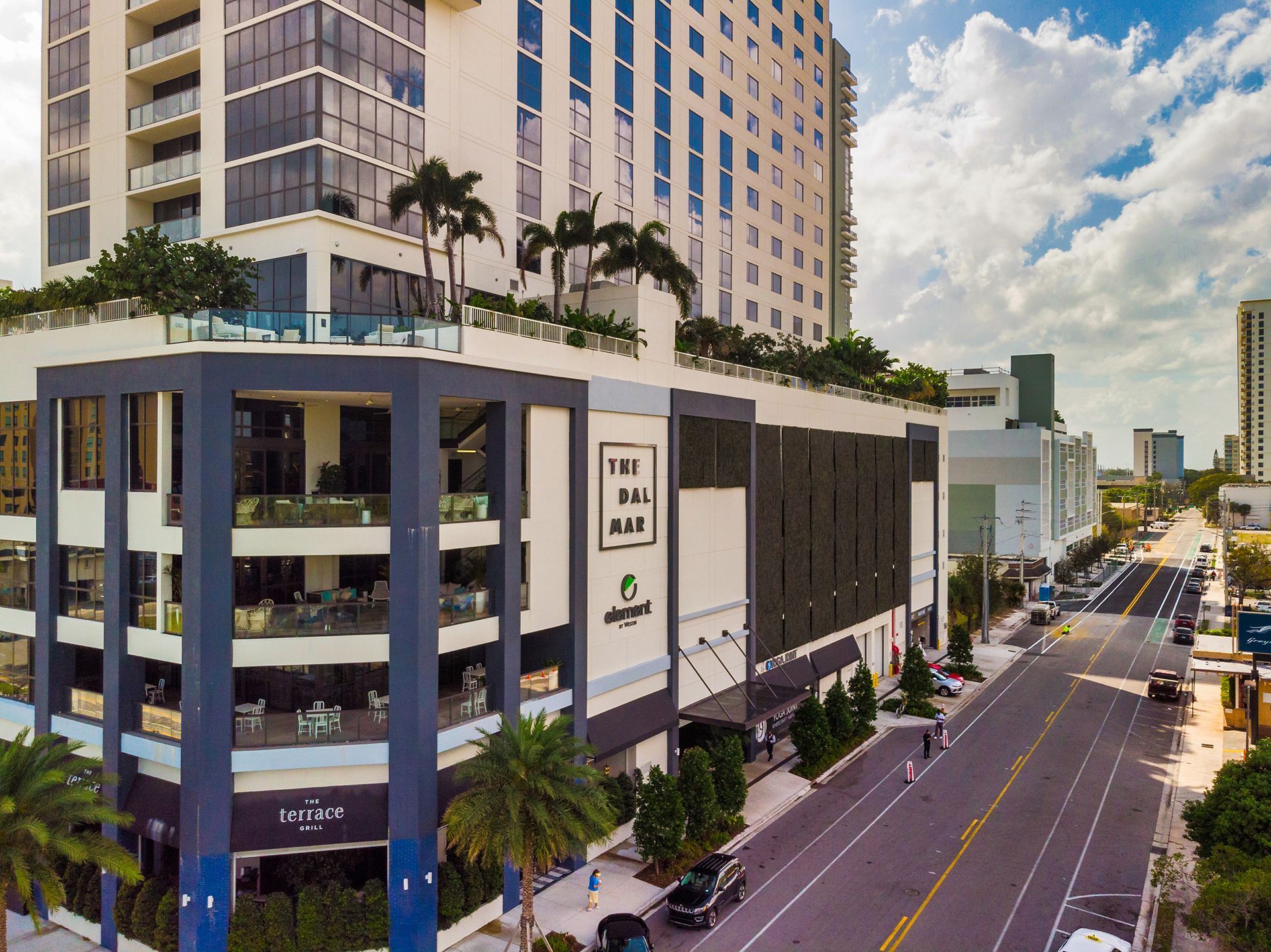

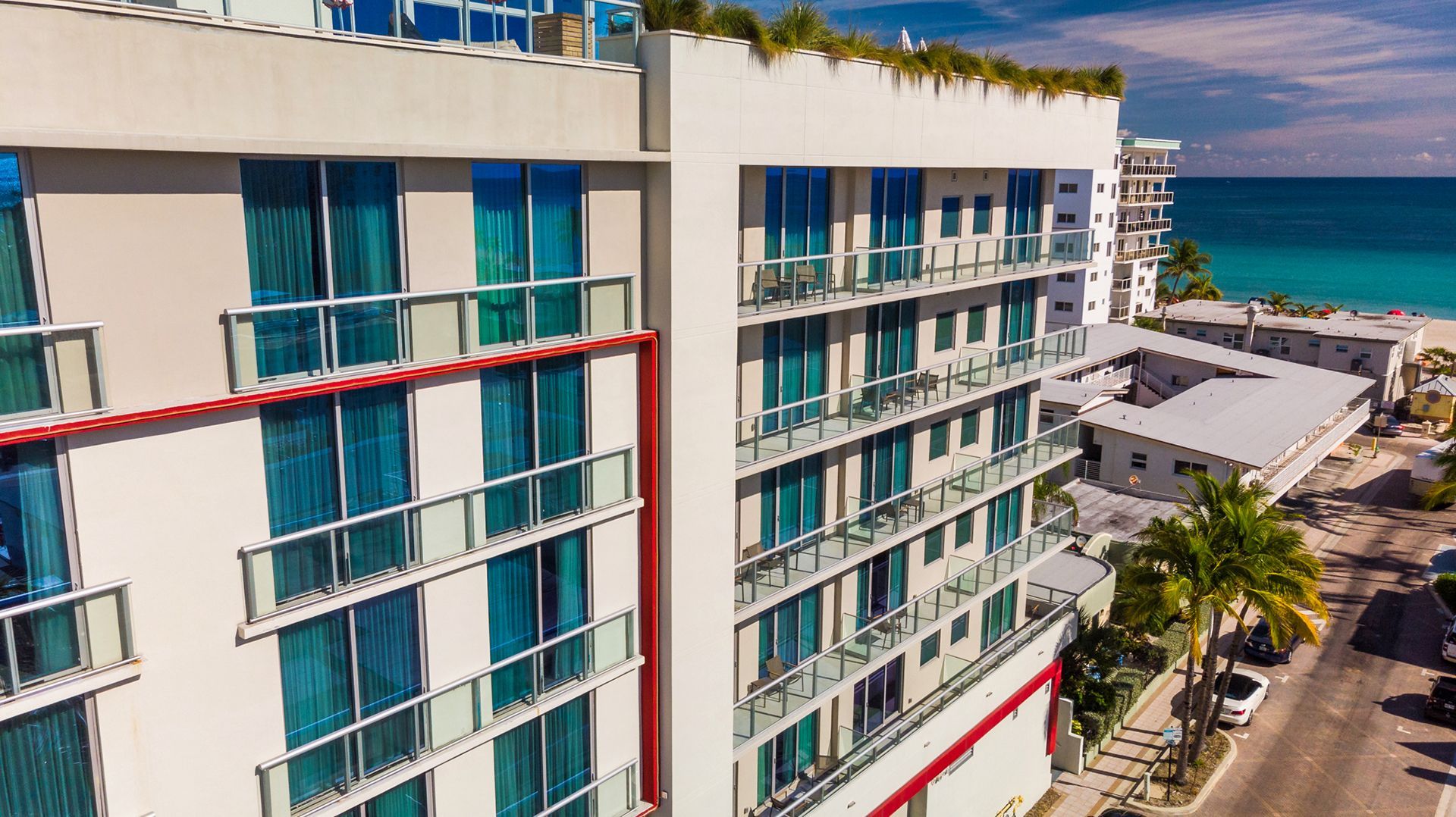

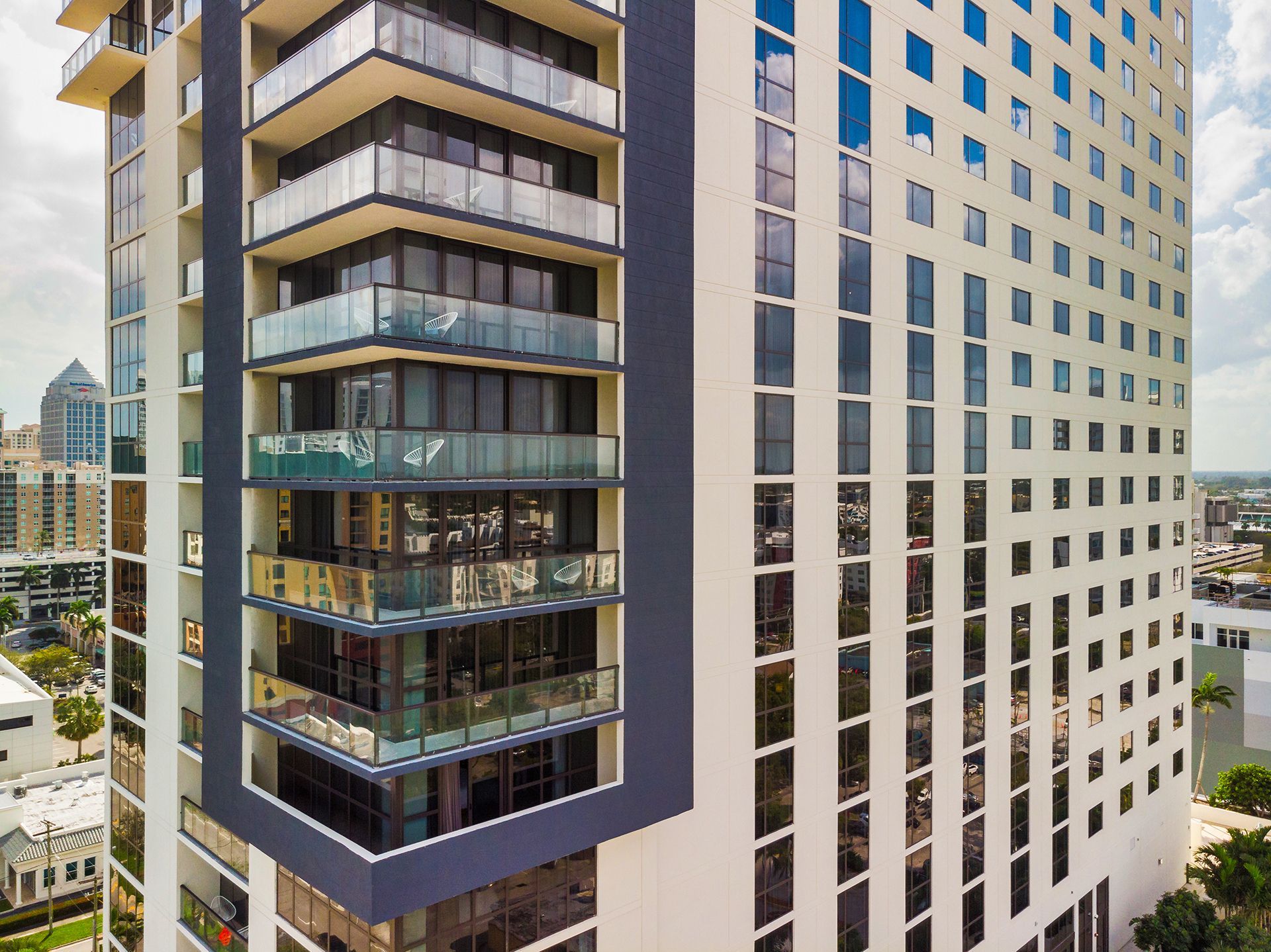

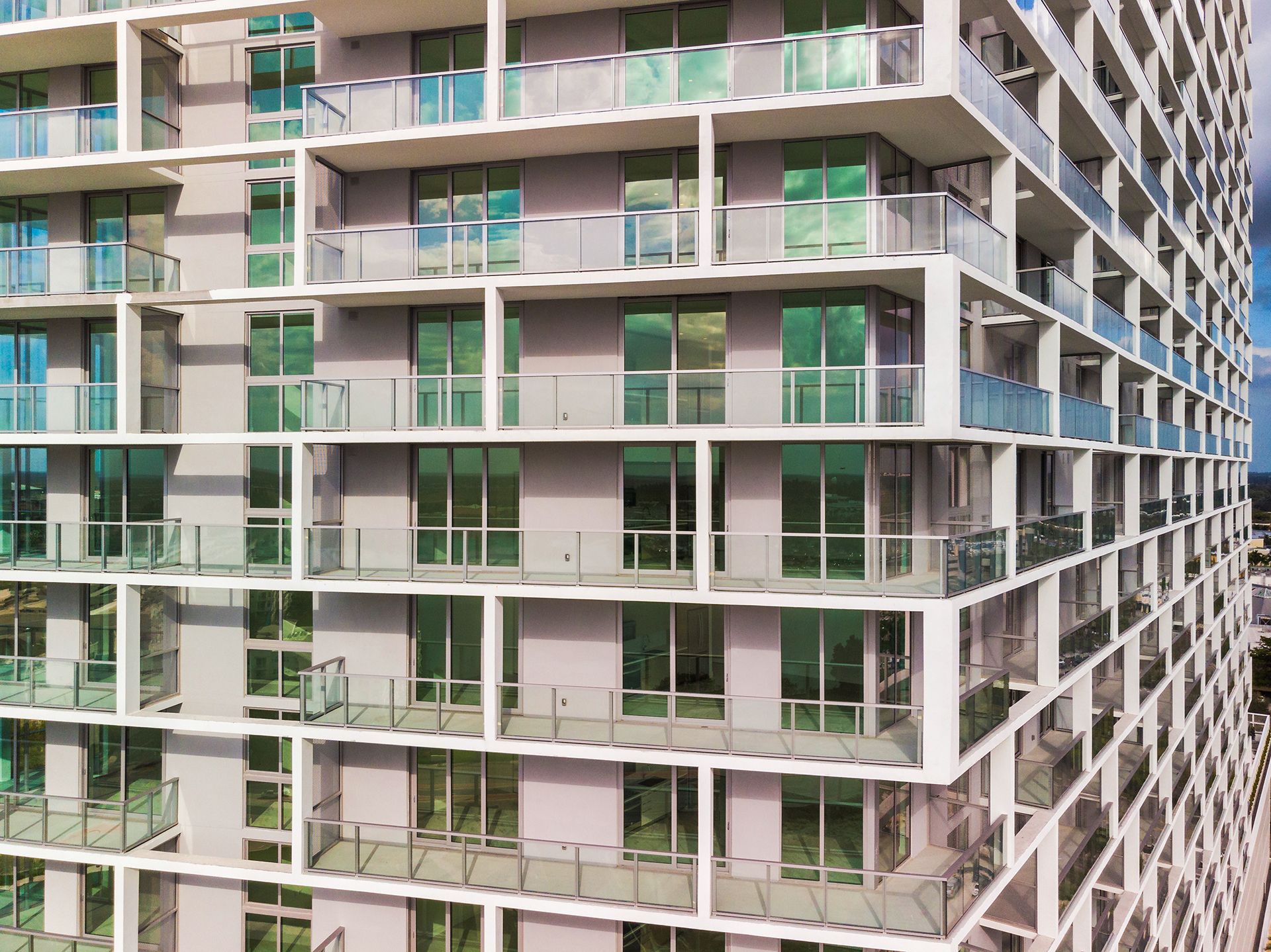

Impact Resistant Aluminum and Glass Railing System

  • Designed and tested to comply with FBC 2020
  • Pre-glazed railing system
  • Dry glazed. Glass 7/16” laminated heat strengthened
  • Posts embedded in non-shrinking high resistance grouting
  • Posts aluminum sections of 3-5/16” x 2-3/4”
  • Glass supported at top and bottom rails only with polished vertical edges creating an aesthetically appealing ¼” joint in front of the posts
  • Variety of railing cap designs
  • Post spacing 48” max. at 44” height
  • Maximum pressure: 110 PSF
  • Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)
